Molex 0511101250 — Connector Housings

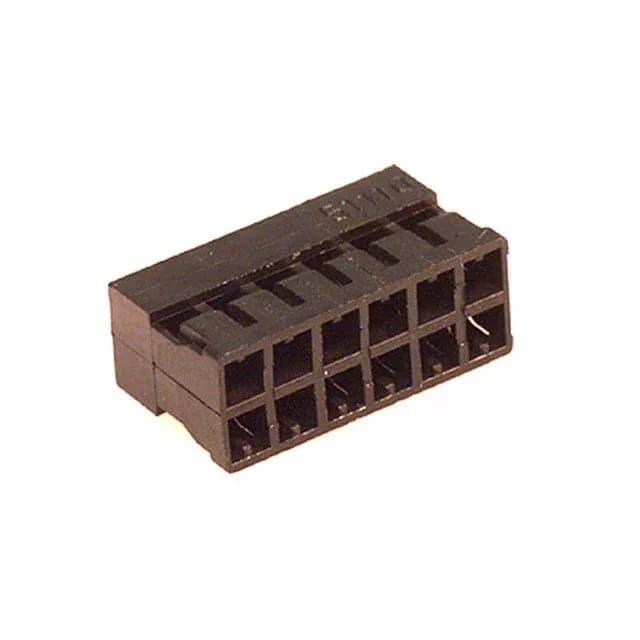

Molex Milli-Grid 0511101250 Receptacle Housing, 12 Pos

MPN0511101250
Active

Molex Milli-Grid 51110 receptacle housing, 12 positions, 2.00mm pitch, 2 rows, free hanging (in-line) crimp termination, black polyester housing, -40°C to 105°C, ROHS3.

$0.4800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 51110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0511101250 specifications
ParameterValue
SeriesMilli-Grid 51110
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyester, Glass Filled
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions12

Product details

The Molex 0511101250 is the 12-circuit receptacle housing from the Milli-Grid 51110 series, a 2.00mm pitch dual-row system built for dense wire-to-board and in-line harness interconnects. The free-hanging (in-line) mount and crimp termination suit it for harness assemblies where the connector lands on a wire bundle, not a PCB.

The 12 positions match a 12-circuit BOM line — count the circuits before committing, because the housing does not have spare cavities. The 2.00mm pitch gives good routing density for signal-level wiring on a 0.062" or 0.093" PCB; the 0.079" row spacing keeps the overall width under 0.25" for the dual-row layout.

The contacts question — what you actually order

The 0511101250 is a housing only. The note on the listing is unambiguous: contacts are not included. You need the matching Milli-Grid female crimp terminal — typically the Molex 50394 series or 50395 series, depending on wire gauge. The housing accepts the terminal after crimping, and the terminal locks into the cavity with a positive retention latch. The 12-position count means 12 terminals for a full populate.

Frequently asked questions

Where can I buy 0511101250 and how do I get a price?

No stock-holding claim or firm price is published here.

Does 0511101250 include contacts?

No. The listing explicitly states contacts are not included. You must order the matching Milli-Grid female crimp terminals separately — typically the Molex 50394 or 50395 series depending on your wire gauge.

What contact mates with 0511101250?

The housing accepts Milli-Grid female socket crimp terminals. The exact Molex terminal part number depends on the wire gauge you are terminating — the 50394 series for 22-28 AWG or the 50395 series for 20-24 AWG are common choices. Confirm the terminal matches the housing cavity and your wire size before ordering.
