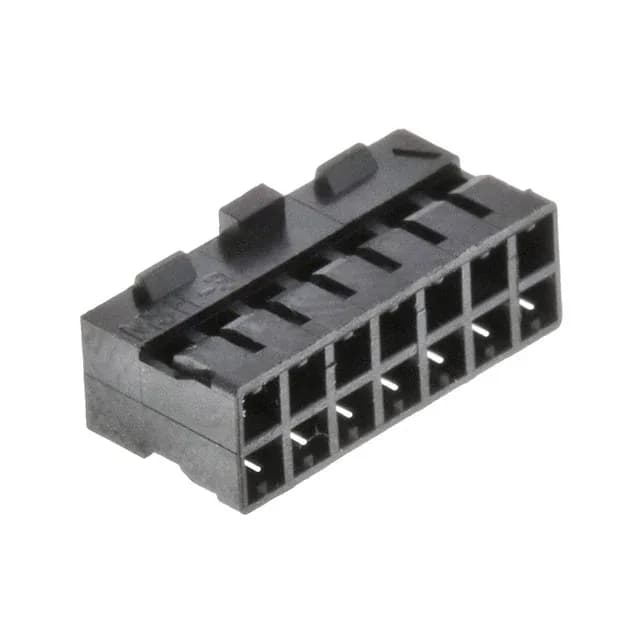

Molex Milli-Grid 51110 series receptacle housing, 14 positions, 2 rows, 2.00mm pitch, free-hanging, locking ramp, black polyester housing, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 51110 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 14 |
You need the separate Milli-Grid 51110 crimp terminal (female socket, Molex 50394 series) to populate each of the 14 cavities. The terminal is inserted into the housing after crimping onto the wire, and the locking ramp secures the assembly.
