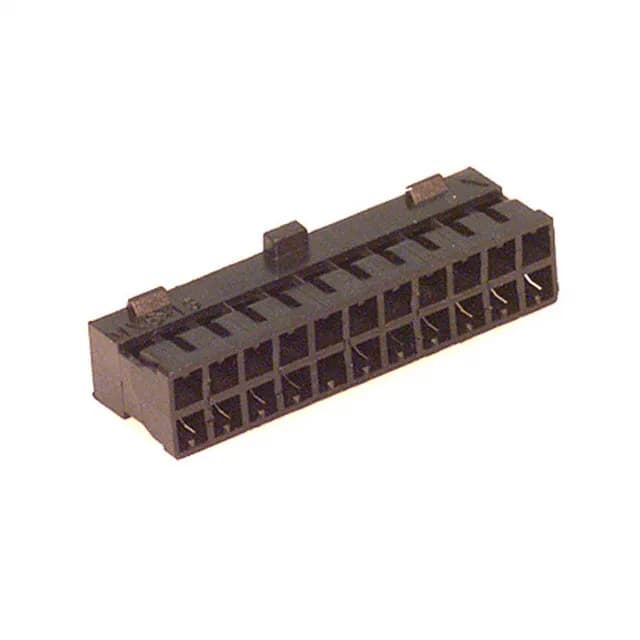

Molex Milli-Grid 51110 receptacle housing, 22 positions, 2 rows, 2.00mm pitch, crimp termination, free-hanging, locking ramp, black, contacts not included.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 51110 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Row spacing | 0.079\" (2.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 22 |
The 22 circuits in two rows give a 2x11 arrangement — confirm your BOM calls for 22 signal or power lines before ordering.
The free-hanging (in-line) mounting lets you route the harness directly to the board without a secondary connector shell.
The pitch is 2.00 mm (0.079") between centres, with the same row spacing. This matches the standard Milli-Grid 51110 board footprint.
It mates with any Milli-Grid 51110 series header of the same 2.00 mm pitch and 22 positions — typically a shrouded or unshrouded pin header from the same series. Confirm the header's orientation (vertical or right-angle) and plating (tin or gold) to match your application's mating cycle and signal requirements.
