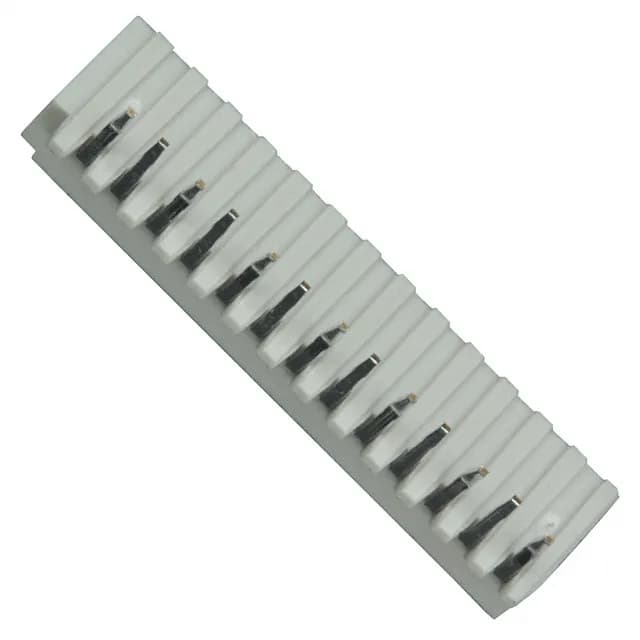

Molex MicroBlade 53015 header, order code 0530151310, 13 positions, single row, 2.00 mm pitch, tin-plated mating contacts, through-hole right-angle, press-fit and solder termination.
| Parameter | Value |
|---|---|
| Series | MicroBlade 53015 |
| Type | Male Blade |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Phosphor Bronze |
| Insulation color | White |
| Insulation height | 0.183\" (4.65mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Telecommunications |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.122\" (3.10mm) |
| Contact finish thickness - mating | 35.4µin (0.90µm) |
The 0530151310 is the 13-circuit member of Molex's MicroBlade 53015 board-to-wire header line, shrouded on four walls with a detent lock for positive retention.
The 0530151310 is listed as Obsolete by Molex.
