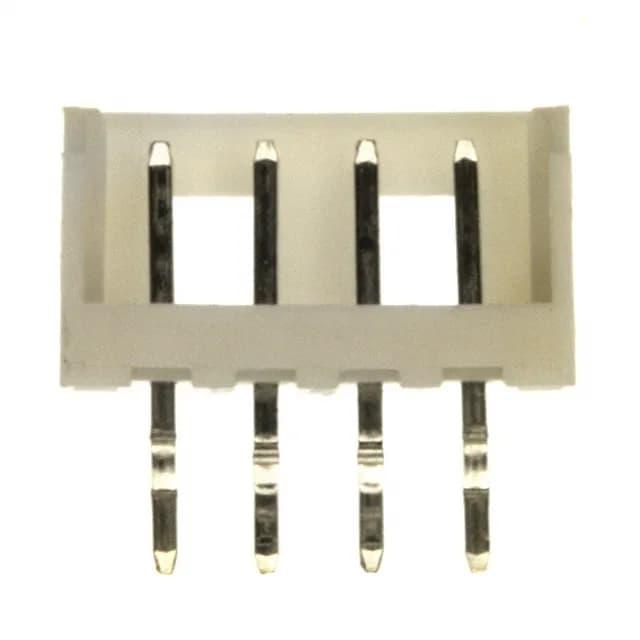

Molex Micro-Latch 53253 series, 0532530470, board-to-cable/wire header, 4 circuits, 2.00 mm pitch, single-row, through-hole, vertical, shrouded 3-wall, detent lock, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-Latch 53253 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.217\" (5.51mm) |
| Insulation material | Polyamide (PA), Nylon |
| Mated stacking heights | 5.7mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Shrouding | Shrouded - 3 Wall |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.331\" (8.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.130\" (3.30mm) |
The kinked solder tails (0.138" post length) provide retention during wave soldering and a visual inspection point for solder joint quality on the through-hole side.
The tin-on-tin contact interface (mating and post) is standard for cost-sensitive, moderate-duty interconnects.
The 0532530470 is a single-row, 4-position header. All positions are loaded with male square pins. The pinout follows the standard 1-to-4 sequence; the mating receptacle uses the same circuit order.
Yes, the 0532530470 is ROHS3 compliant per the manufacturer's listing.
