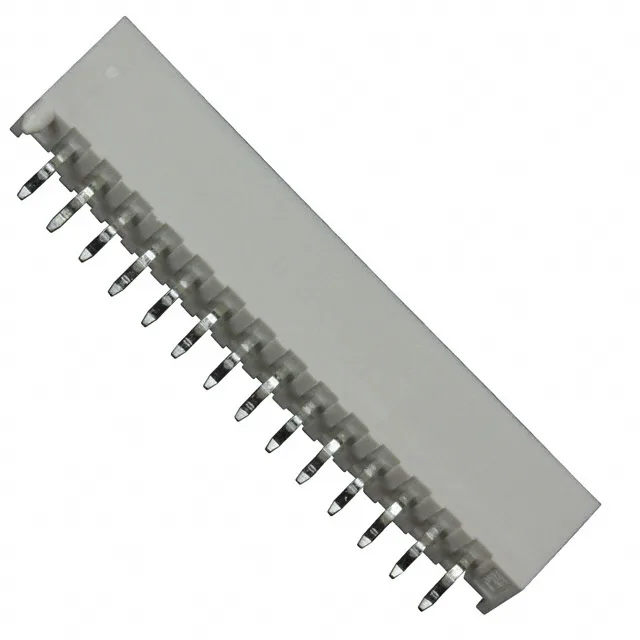

0533241460 - Molex
MPN0533241460
Obsolete
$0.4600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mi II 53324 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.136\" (3.45mm) |
