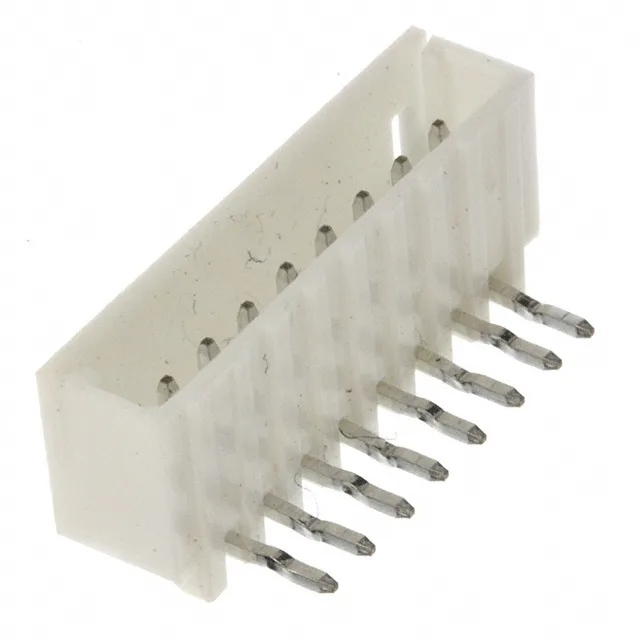

Molex Mi II 53325 header, order code 0533250860, 8 positions, single row, 2.00 mm pitch, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | Mi II 53325 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.191\" (4.85mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.136\" (3.45mm) |
The 0533250860 is the 8-circuit member of Molex's Mi II 53325 header line, a board-to-cable/wire shrouded header with a 4-wall shroud and detent lock.
Molex lists the 0533250860 as Obsolete.
This part is obsolete; check surplus distributors or submit an RFQ for lot-specific availability and pricing.
