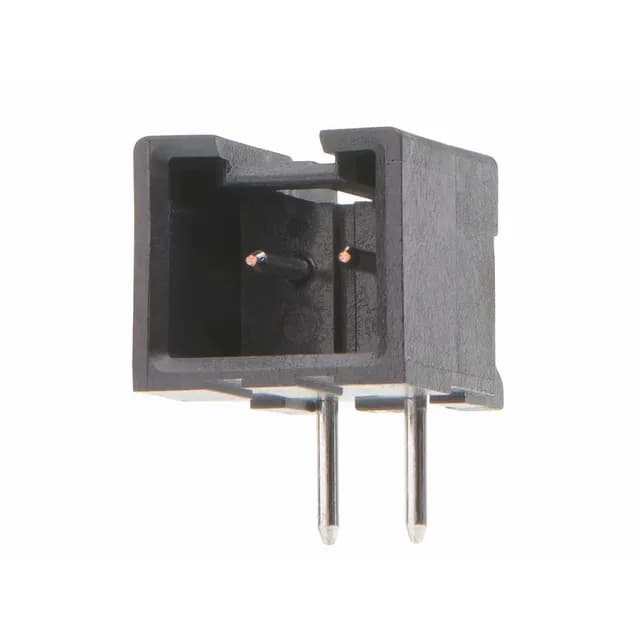

Molex Mini-Lock 53426 header, 2 circuits, 2.50 mm pitch, right-angle through-hole, tin-plated male pins, shrouded 4-wall housing, locking ramp, glow wire compliant, UL94 V-0, 3 A per contact, 250 VAC/DC.
| Parameter | Value |
|---|---|
| Series | Mini-Lock 53426 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250VAC/DC |
| Current rating | 3A per Contact |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.264\" (6.70mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bag |
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
The locking ramp fastening provides audible and tactile feedback during mating, securing the connection against vibration in equipment panels or appliances. The housing is glass-filled nylon (UL94 V-0) and glow wire compliant, making it suitable for IEC 60335-1 glow-wire testing common in household appliances and lighting fixtures.
No stock-holding claim is made.
The mating pitch is 2.50 mm (0.098").
Yes, it is ROHS3 compliant.
