Molex 0535170741 — Pin Headers

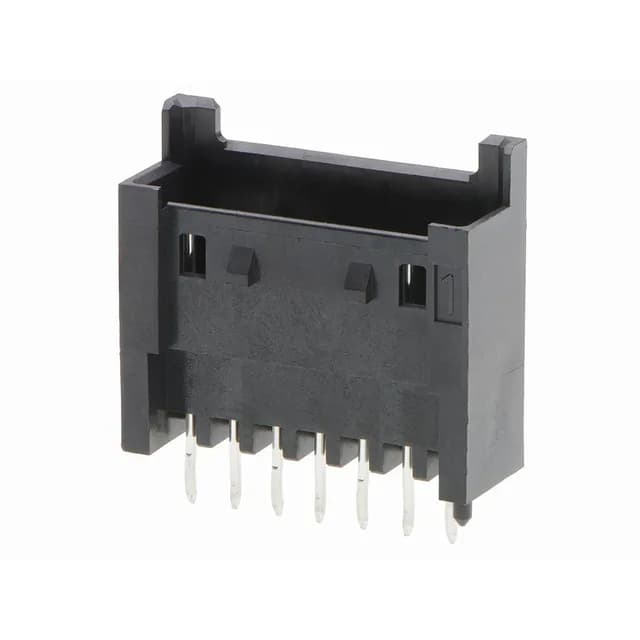

Molex 0535170741 Mini-Lock 53517 Header – 7 Circuit

MPN0535170741
Active

Molex Mini-Lock 53517 series, 0535170741, a 7-circuit single-row through-hole header, 2.50mm pitch, shrouded 4-wall, locking ramp, tin-plated contacts, rated 3.5A per contact at 250VAC/DC, glow wire compliant, UL94 V-0.

$0.5800Ref. price · indicative, final on quote
Molex 0535170741 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMini-Lock 53517
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0535170741 key specifications
ParameterValue
SeriesMini-Lock 53517
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250VAC/DC
Current rating3.5A per Contact
Operating temperature-55°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.689\" (17.50mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled

All specifications

0535170741 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBag
FeaturesGlow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
Contact shapeCircular
Rows1
Pitch0.098\" (2.50mm)
Positions7
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Board-to-Wire Header for Compact Harnessing

Glow Wire and Flame Rating for Appliance Safety

The housing is glow wire compliant per IEC 60695-2-11, a requirement for white goods, HVAC, and lighting fixtures where the connector must not propagate a flame under fault conditions.

Mating Half and Locking Ramp

This header mates with the Mini-Lock 53517 series crimp receptacle housing (e.g., Molex 053517-xx71 series) and uses the matching crimp terminal (Molex 053517-xx71 terminal).

ROHS3 compliant, with no known successor or cross-reference from the original manufacturer.

Frequently asked questions

Where can I buy Molex 0535170741 online?

Molex 0535170741 is available through independent distribution channels. Sourced per RFQ – contact us with your BOM quantity for current pricing and lead time confirmation.

What connector housing mates with Molex 0535170741?

The 0535170741 header mates with the Mini-Lock 53517 series crimp receptacle housing (e.g., Molex 053517-xx71 series) and uses the matching crimp terminal (Molex 053517-xx71 terminal). The 2.50mm pitch and 7-circuit count must match the mating half.
