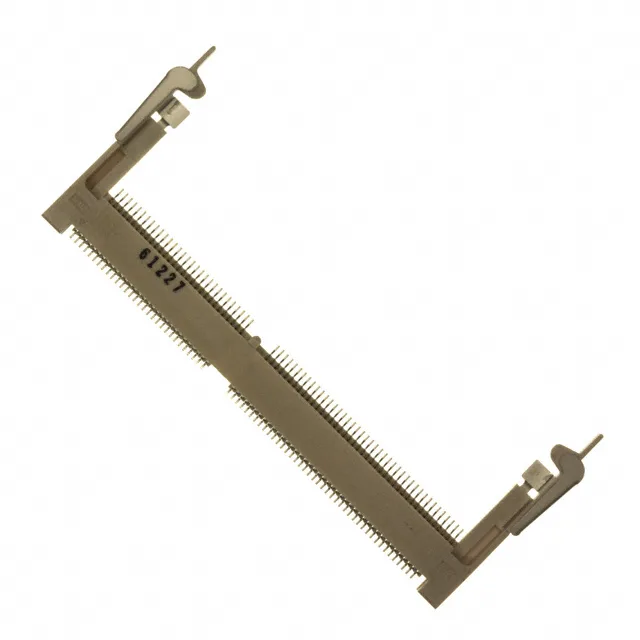

Molex 0546977000 SODIMM Connector, 144 Pos, 25° Angle

MPN0546977000
Obsolete

Molex 54697 series SODIMM connector, order code 0546977000, 144 positions, 25° angle, gold-plated contacts (10.0µin), surface mount, tray package, white housing, 0.196" (4.00mm) height.

$8.1100Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0546977000 Technical Specifications
ParameterValue
Series54697
Memory typeDRAM, SDRAM
MountingSurface Mount
Mounting featureNormal, Standard - Top
Connector typeSODIMM
ColorWhite
Height0.196\" (4.00mm)
PackageTray
FeaturesBoard Guide, Latches
Card thickness0.039\" (1.00mm)
Contact finishGold
Insertion angle25° Angle
Positions144
Contact finish thickness10.0µin (0.25µm)

Product details

SODIMM socket for DRAM, SDRAM

The 0546977000 is a 144-position SODIMM connector from Molex's 54697 series, designed for DRAM and SDRAM modules. It accepts a 0.039" (1.00mm) card thickness, mounts surface-mount with a normal top mounting feature, and carries gold-plated contacts with 10.0µin (0.25µm) thickness.

Frequently asked questions

What is the card thickness this SODIMM connector accepts?

The connector accepts a card thickness of 0.039" (1.00mm).

What colour is the 0546977000 housing?

The housing is white.
