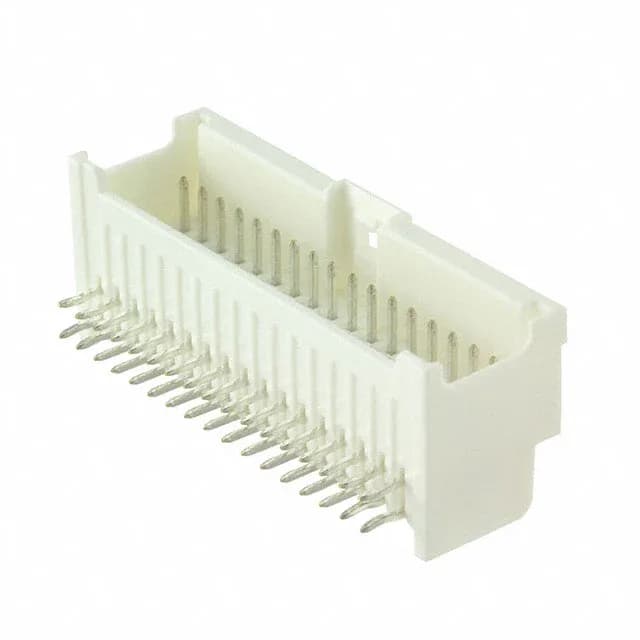

34-Position Right-Angle Header for Board-to-Cable Routing
The 0559593430 is a 34-circuit, dual-row header from Molex's MicroClasp 55959 series, built for board-to-cable/wire applications where a reliable, vibration-resistant connection is needed.
Tin-Plated Contacts for Cost-Effective Signal Duty
Tin is adequate for applications with infrequent mating cycles — think once at assembly and maybe a field service event. The kinked-pin solder termination provides mechanical retention in the plated through-hole before wave solder; the post length of 0.126" (3.20mm) is standard for a 1.6mm board thickness. The square pin geometry (0.64mm typical for 2.00mm pitch) gives reliable contact wipe on insertion.
