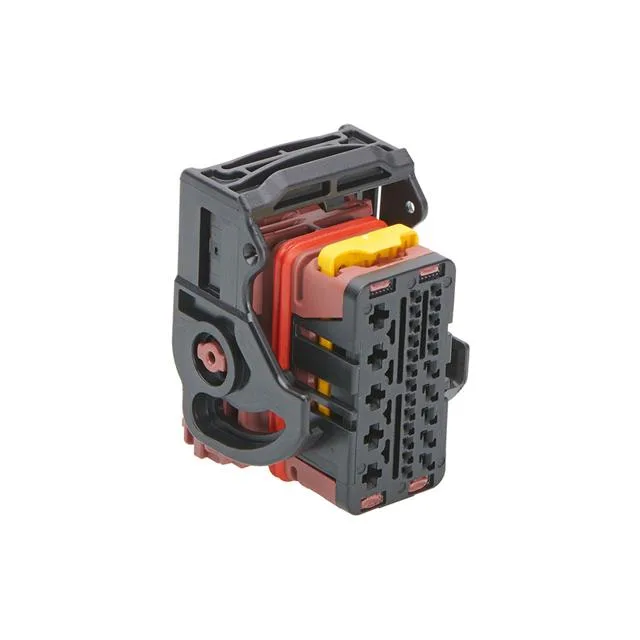

0643181011 — Molex product photo
Molex

Molex 0643181011 CMC Receptacle, 28 Pos, Sealed

MPN0643181011
Active

Molex CMC 64318 series receptacle, 0643181011, 28 positions, 3 rows, female socket, crimp termination, free-hanging, sealed, black PBT housing, latch holder, -40°C to 125°C.

$9.1700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0643181011 Technical Specifications
ParameterValue
SeriesCMC 64318
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
FeaturesLeft Wire Output, Sealed
PackageBulk
Rows3
Contact terminationCrimp
Positions28

Product details

28-Position Sealed Receptacle — What You're Ordering

The Molex 0643181011 is a 28-circuit receptacle from the CMC 64318 series, arranged in 3 rows for a compact power-plus-signal interface in a single sealed housing. The 'Left Wire Output' feature means the cable exits the left side of the connector when viewed from the mating face — a routing detail that matters when the harness layout is tight and the exit direction is specified on the assembly print.

Sealed Housing with Latch Retention

This receptacle is designed as a sealed connector — when mated with the correct CMC plug and the interface seal is in place, the assembly meets IP ratings suitable for splash zones and washdown environments. The latch holder locks the pair together and prevents accidental unmate from harness snag or machine vibration. The 3-row cavity layout accepts the matching CMC female socket terminals (sold separately) for wire sizes typical of automotive-grade power and signal circuits.

Mating Plug and Wire Gauge

The mating half for this 0643181011 receptacle is a CMC 64318 series male plug housing with the same 28-position, 3-row cavity count. The exact plug order code depends on the wire output direction and keying option required for the harness assembly.

Frequently asked questions

Does Molex 0643181011 include contacts?

No. The 0643181011 is a receptacle housing only — the female socket terminals must be ordered separately as a different line item. The product note explicitly states 'Contacts Not Included'.

What is the mating plug for Molex 0643181011?

The mating half is a CMC 64318 series male plug housing with 28 positions in 3 rows. The specific plug order code depends on the wire exit direction and keying variant required for the harness assembly.
