Molex CMC 64334 series, 32-circuit right-angle header, 4 rows, tin-plated male pins rated 12 A per contact at 14 VDC, latch lock and board lock, shrouded -4 wall, -40°C to 125°C, tray.
| Parameter | Value |
|---|---|
| Series | CMC 64334 |
| Type | Male Pin |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 14VDC |
| Current rating | 12A per Contact |
| Operating temperature | -40°C ~ 125°C |
| Insulation color | Black |
| Insulation height | 0.974\" (24.75mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide, Board Lock, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Rows | 4 |
| Positions | 32 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |

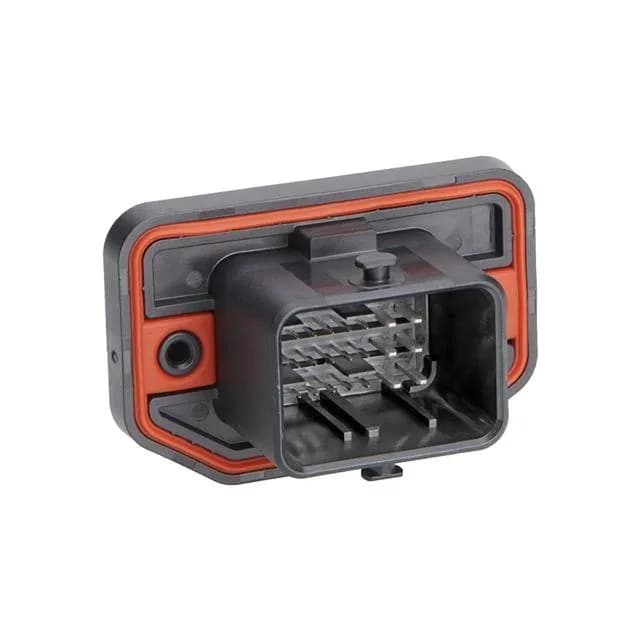

The 0643341001: This Molex CMC 64334 header carries 32 circuits in a 4-row right-angle layout, designed for board-edge mounting in automotive power and signal distribution. The shrouded -4 wall housing with latch lock and board lock provides mechanical retention against vibration and cable strain — a practical fit for under-hood or body electronics where the connector sees vehicle motion.
Molex 0643341001 is available through independent distribution.
The header has 32 positions, all loaded, arranged in 4 rows. The pinout follows the CMC 64334 series standard; confirm the mating half circuit assignment against your harness drawing.
