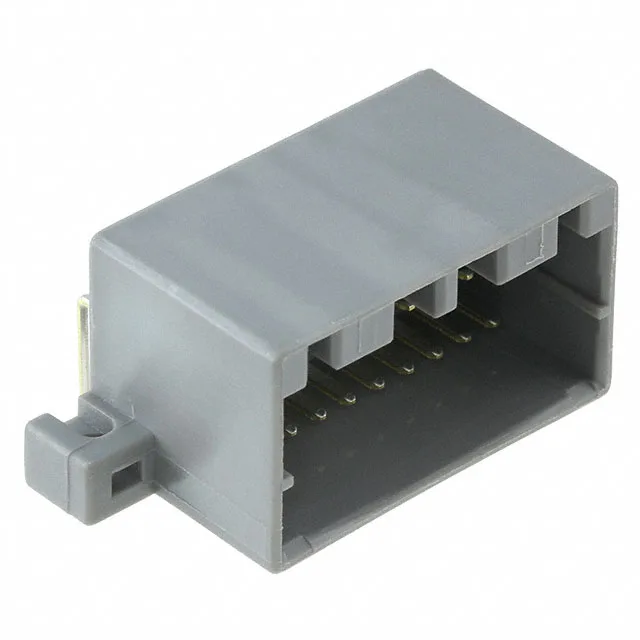

Molex 0681512025
MPN0681512025
Active
$1.1077Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 68151 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.665\" (16.90mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 HB |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 20 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.157\" (4.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.276\" (7.00mm) |
