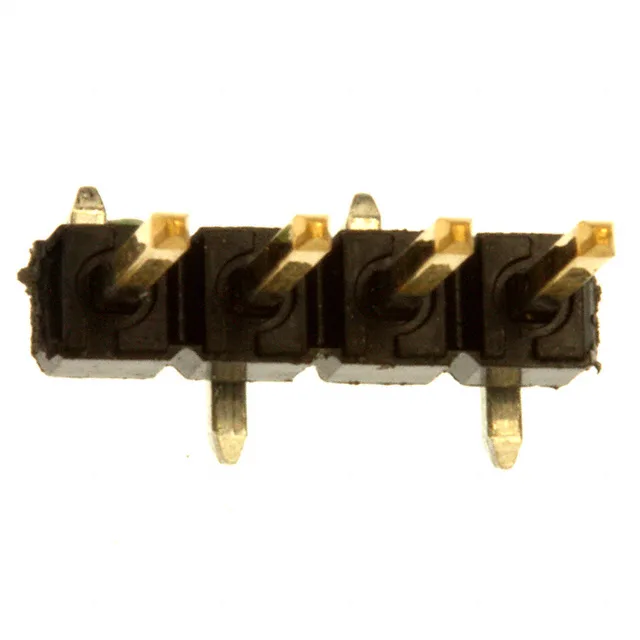

0683011010 — Molex product photo
Molex

Molex 0683011010 KK254 4-Pin SMT Header, 0.100" Pitch

MPN0683011010
Active

Molex KK254, 68301 series, 0.100" (2.54mm) pitch header, 4 circuits, single row, surface mount, unshrouded, gold-plated mating contacts, UL94 V-0 black PA46 housing.

$0.3300Ref. price · indicative, final on quote
0683011010 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0683011010 Technical Specifications
ParameterValue
SeriesKK254, 68301
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

4-position SMT header, 0.100" pitch

The 0683011010: This is a Molex KK254 series single-row header with 4 positions on 0.100" (2.54mm) pitch, terminated by surface mount solder tails.

Surface mount footprint and board fit

The 0.100" pitch matches the standard 2.54mm grid, so the footprint aligns with common perfboard and prototyping layouts. The 0.240" (6.10mm) mating pin length provides enough reach for standard KK254 crimp receptacles. Insulation height is 0.090" (2.29mm) above the board — low enough to keep the header under a mezzanine board or cover, but tall enough to clear solder fillets on the opposite side.

We source this against an RFQ — confirm your BOM quantity and we'll return current pricing and lead time.
