Molex 0702461402 — Pin Headers

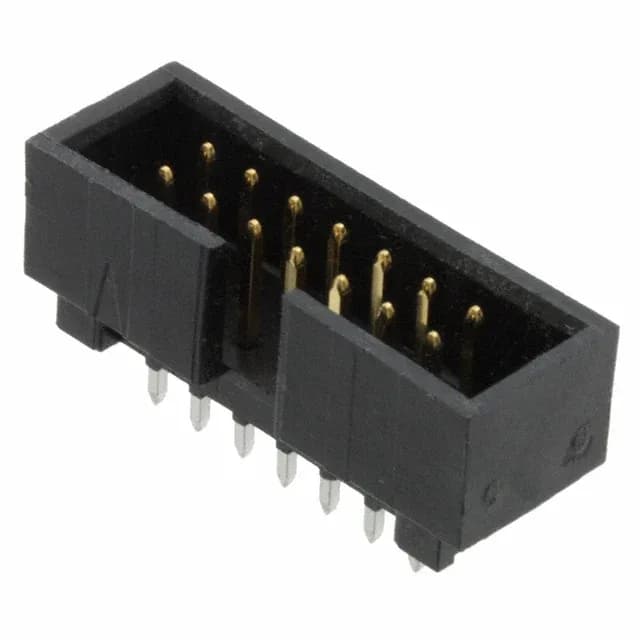

Molex 0702461402 C-Grid 70246 Header – 14 Pos, 2.54mm Pitch

MPN0702461402
Active

Molex C-Grid 70246 series, 0702461402, Board to Cable/Wire header, 14 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, gold mating finish, UL94 V-0.

$2.8300Ref. price · indicative, final on quote
Molex 0702461402 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid 70246
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0702461402 key specifications
ParameterValue
SeriesC-Grid 70246
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.365\" (9.27mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

0702461402 additional specifications
ParameterValue
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Overall contact length0.500\" (12.70mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

14-Position Dual-Row Header for Wire-to-Board Harnesses

The 0702461402 is a 14-circuit, dual-row vertical header from Molex's C-Grid 70246 series. The header is specified for Automotive, General Purpose, Lighting, Medical, and Telecommunications equipment.

PCB Footprint and Mating Half

The 0.100" x 0.100" dual-row grid sets a straightforward through-hole footprint: 14 plated holes on 2.54mm pitch, two rows spaced 2.54mm apart. The solder tails are 0.135" (3.43mm) long — enough for a standard 1.6mm PCB with a wave-solder fillet on the bottom side. Mating receptacles are C-Grid 70246 or 70247 series crimp housings (sold separately).

Frequently asked questions

What is the pitch of 0702461402?

Mating pitch is 0.100" (2.54mm) between centres on the same row, and row spacing is also 0.100" (2.54mm).
