Molex 0702461602 — Pin Headers

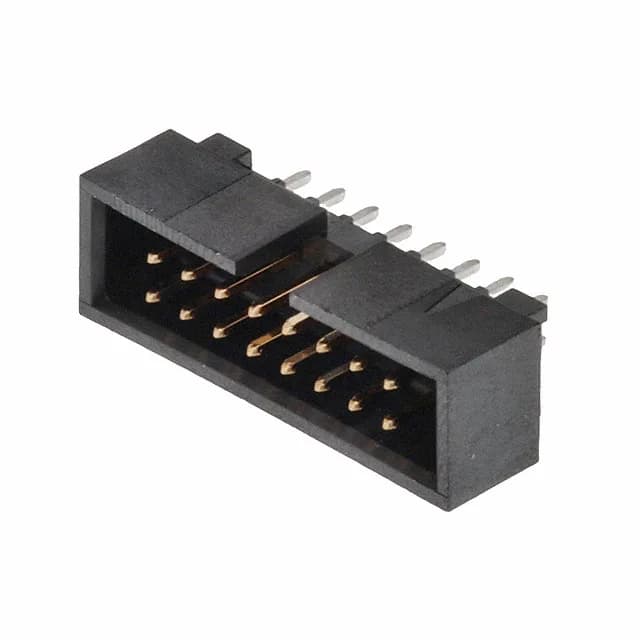

Molex 0702461602 C-Grid 70246 Header 16 Pos 2.54mm

MPN0702461602
Active

Molex C-Grid 70246 series, 0702461602, Board to Cable/Wire, Shrouded - 4 Wall, Through Hole, Solder, 16 Positions, 0.100" (2.54mm) Pitch, Gold Mating Finish, Black PBT Housing, UL94 V-0, Tray

$3.4400Ref. price · indicative, final on quote
Molex 0702461602 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid 70246
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0702461602 key specifications
ParameterValue
SeriesC-Grid 70246
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.365\" (9.27mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

0702461602 additional specifications
ParameterValue
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Overall contact length0.500\" (12.70mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

16-Pin Dual-Row Header for Wire-to-Board Interconnects

Rated for automotive, general purpose, lighting, medical, and telecommunications equipment per the listed applications. The UL94 V-0 glass-filled PBT housing supports use in equipment requiring flame-rated enclosures.

Gold-on-gold mating interface reduces contact resistance drift over the connector's service life.

Through-Hole Termination and PCB Footprint

The through-hole solder termination uses a 0.135" (3.43 mm) post length and a 0.240" (6.10 mm) mating pin length, with an overall contact length of 0.500" (12.70 mm). The 0.100" pitch and row spacing match standard 0.100" grid perforated boards or custom layouts. The 0.365" (9.27 mm) insulation height provides clearance for wire routing under the mated housing. The keying slot feature prevents mismating with non-keyed counterparts.

Sourced through independent distribution channels.

Frequently asked questions

What is the mating connector for the 0702461602?

The 0702461602 mates with a C-Grid 70246 series crimp receptacle housing (such as the 16-position 70107 or 70110 series) using the appropriate crimp terminals. The 0.100" pitch and 4-wall shrouding require a matching shrouded or unshrouded receptacle with the same row spacing.

What is the difference between 0702461602 and 0702461601?

Both are 16-position, 0.100" pitch, dual-row C-Grid 70246 headers. The difference is typically in the contact plating or packaging. The 0702461602 uses a gold mating finish (30.0 µinch) and tin post finish, while the 0702461601 may use a different plating combination. Verify the specific plating grade for your application.
