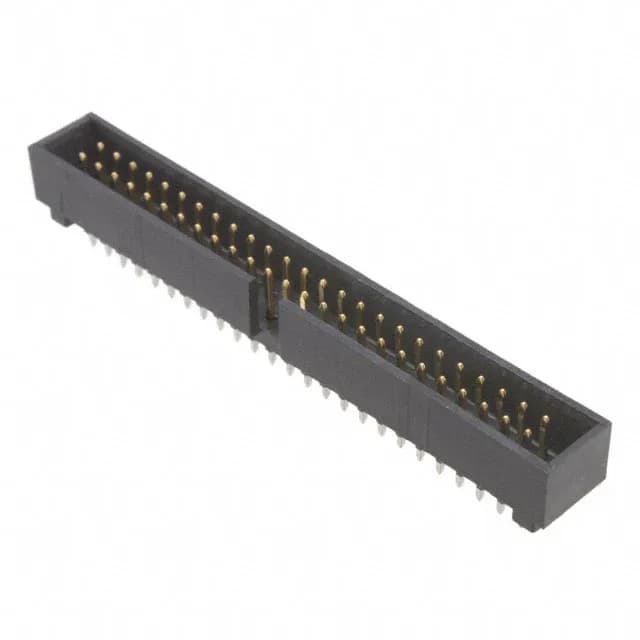

The 0702465001 is a 50-position, dual-row male header from Molex's C-Grid 70246 series. It mates with C-Grid wire-to-board receptacles and IDC connectors, making it a go-to part for high-density cabling in telecom, automotive, medical, and general-purpose equipment. Four-wall shrouding protects the square pins during blind mating and prevents bent contacts when the harness is plugged in. The push-pull latch keeps the pair engaged under moderate vibration, though it is not a locking ramp — in high-shock environments, consider a secondary retention feature at the housing level.
Mating Finish and Contact Life — 15µinch Gold vs 30µinch Siblings
This is a standard signal-grade finish rated for several hundred mating cycles.
Active Production — Sourcing and Lifecycle
Board Layout Fit — Through-Hole and Overall Dimensions
These dimensions define the z-height budget for the mating receptacle and the through-hole drill depth.
