Active Sourcing and Lifecycle Status

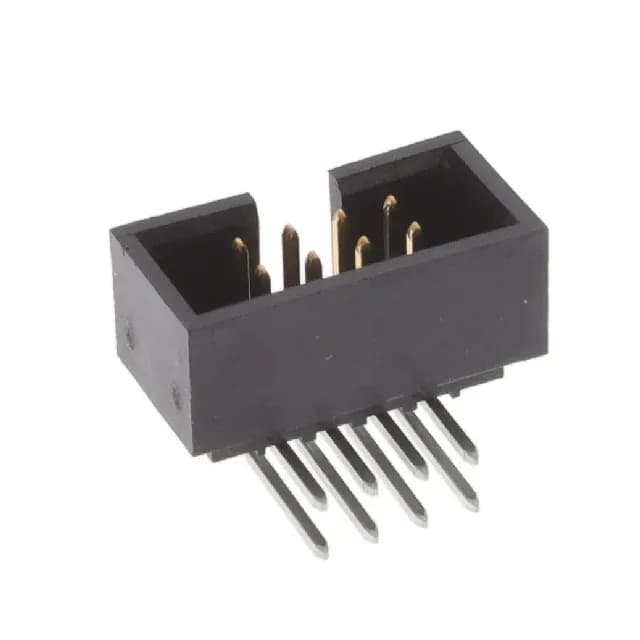

Dual-row, 8 positions loaded all. The 0.350" (8.89mm) insulation height provides clearance for mating receptacle shrouds.
Contact Interface and Plating Grade
The post finish is 74.8µin (1.90µm) tin, compatible with standard solder processes. Phosphor bronze contact material provides good spring retention and resistance to stress relaxation over temperature cycles common in automotive and telecom enclosures.
Mating and Application Context
Mates with C-Grid 70247 series receptacle housings (e.g., 16-02-0102) and crimp terminals — the push-pull fastening type allows tool-less engagement and disengagement for harness assembly.
