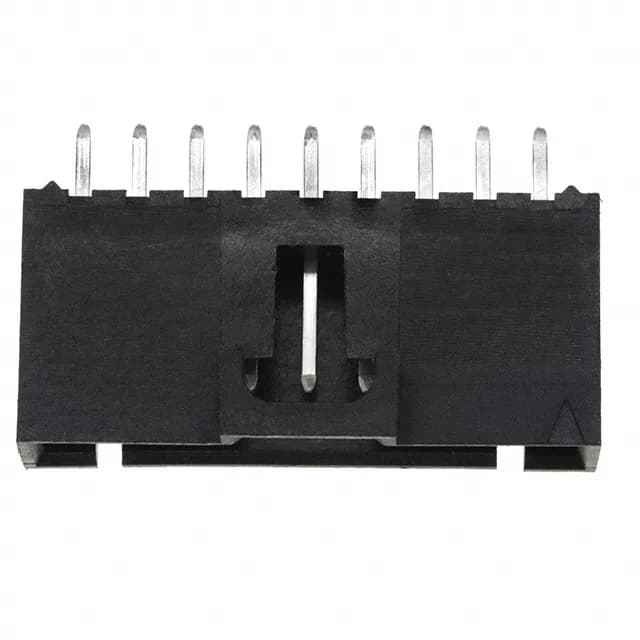

Molex SL 70543, Board to Cable/Wire Header, 9 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Contacts, Black Polyester Housing, UL94 V-0, -40°C to 105°C
| Parameter | Value |
|---|---|
| Series | SL 70543 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0705430113: A latch holder on the top locks the mating half in place — useful in applications where the cable sees occasional tug or vibration.
In a medical or industrial panel where the connector is cycled weekly, that translates to years of reliable service.
No stock-holding claim is made — each order is sourced per your BOM line.
This header mates with a Molex SL 70543 series crimp receptacle housing — typically a single-row, 9-position housing with the matching crimp terminals.
Yes, it is ROHS3 compliant per the manufacturer's declaration.
