Through-Hole Mount and Board Fit
The 0705430114: Insulation height is 0.465" (11.80mm) above the board surface — factor this into your z-height budget if the header sits near an enclosure wall or another board.
The part ships in a tube package.

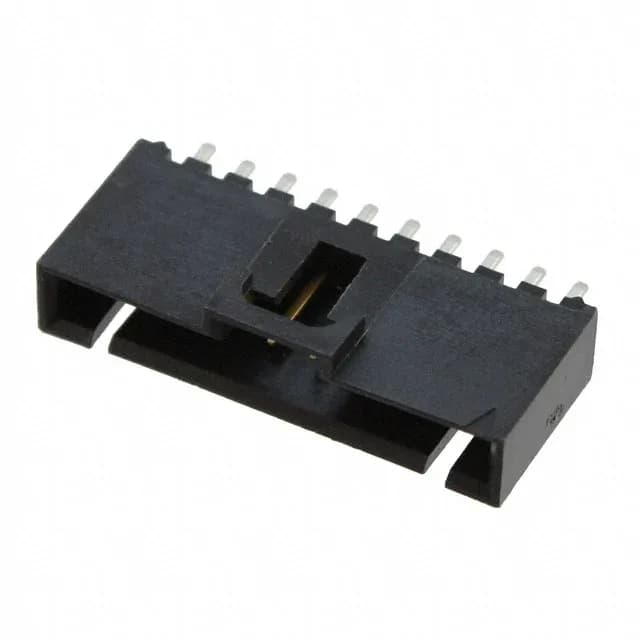

Molex 0705430114 SL 70543 Header, 10 Pos, 2.54mm, Gold
MPN0705430114
Active
Molex SL 70543 series, 0705430114, shrouded 4-wall header, 10 circuits, 2.54mm pitch, through-hole solder termination, gold-plated mating contacts, black polyester housing, UL94 V-0.
$2.4800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 70543
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70543 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for Molex 0705430114?
This header mates with a Molex SL 70543 series crimp receptacle housing — typically a single-row, 10-position housing that accepts the matching crimp terminals.
Is Molex 0705430114 RoHS compliant?
Yes, it is ROHS3 compliant per the manufacturer's status.
