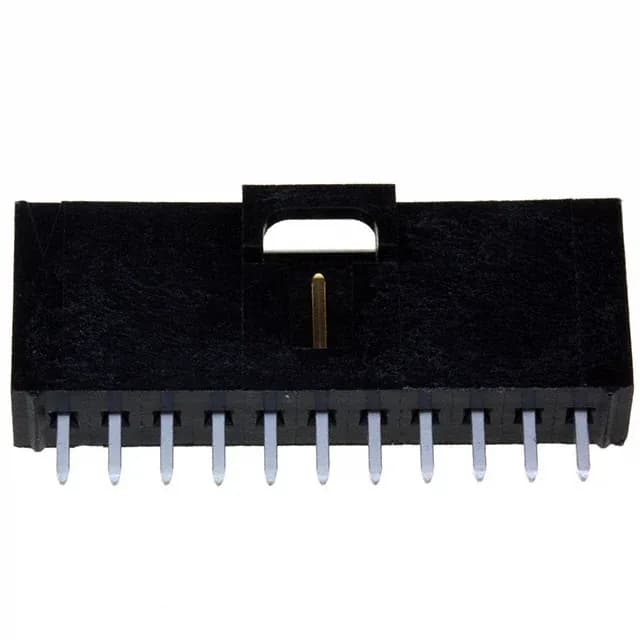

Molex SL 70543 series, 11-position single-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold-plated mating contacts, black polyester housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | SL 70543 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0705430115: The mating contact finish is gold at 30.0 µinch (0.76 µm) over phosphor bronze base material. The solder tails receive a tin finish (74.8 µinch / 1.90 µm) for reliable soldering to the PCB.
The 0.465" (11.80 mm) insulation height above the board provides clearance for the mating receptacle's latch and wire strain relief.
