Molex 0705450004 — Pin Headers

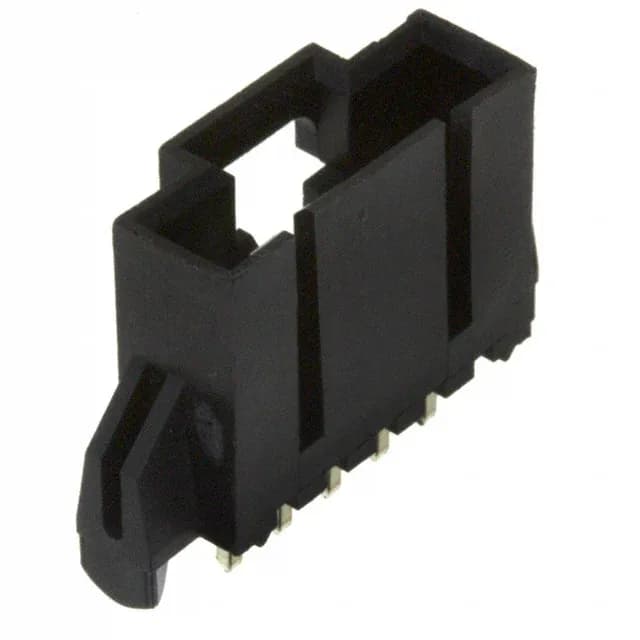

Molex 0705450004 SL 70545 Header, 5 Pos, 2.54mm, Shrouded

MPN0705450004
Active

Molex SL 70545 series, 0705450004, Board to Cable/Wire header, 5 circuits, 0.100" (2.54mm) pitch, single row, shrouded 4-wall, through-hole solder, tin-plated male pins, UL94 V-0 black polyester housing.

$1.5000Ref. price · indicative, final on quote
Molex 0705450004 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 70545
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0705450004 key specifications
ParameterValue
SeriesSL 70545
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.465\" (11.80mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

0705450004 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions5
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.470\" (11.94mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

The 0705450004: It connects a board to a cable or wire assembly via a matching crimp receptacle housing. The latch holder fastening provides a positive click when fully mated, resisting vibration in automotive and industrial panels.

The insulation height of 0.465" (11.80mm) clears most low-profile components on the board. The glass-filled polyester housing (UL94 V-0) handles the reflow profile without distortion.

ROHS3 compliant. No pin-compatible direct replacement or successor listed from Molex for this exact order code.

Frequently asked questions

Where can I buy Molex 0705450004 and what is the lead time?

We source this active Molex part through our independent distribution network. Submit a request for quote to get current pricing and delivery.

What mates with Molex 0705450004?

This header mates with a Molex SL series crimp receptacle housing (such as the 70066 series) that accepts the matching crimp terminals. The 4-wall shroud and latch holder are designed for the SL series female housings.
