Molex 0705450005 — Pin Headers

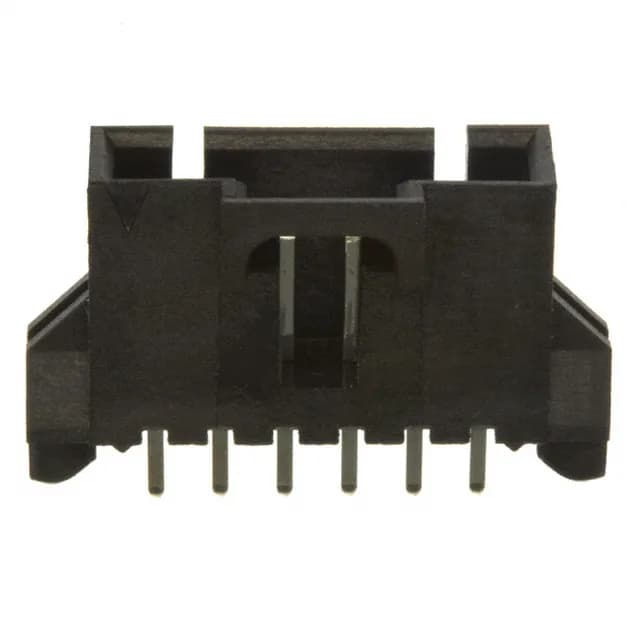

Molex 0705450005 SL Header 6 Pos 2.54mm Pitch Through Hole

MPN0705450005
Active

Molex SL 70545 series, 0705450005, 6-position single-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, tin-plated contacts, latch holder, UL94 V-0, -40°C to 105°C.

$1.3100Ref. price · indicative, final on quote
Molex 0705450005 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 70545
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0705450005 key specifications
ParameterValue
SeriesSL 70545
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.465\" (11.80mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

0705450005 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTube
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.470\" (11.94mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

Board-to-Cable Header for SL Systems

The 0705450005: It mates with SL crimp receptacle housings, providing a positive latch lock for vibration-resistant connections in automotive, industrial, and medical equipment. Rated 250V, the header uses tin-plated phosphor bronze contacts with 150.0µin (3.81µm) mating finish — adequate for moderate-cycle applications where gold plating is not required.

This 6-position header sits between the 5-position (0705450004) and 8-position (0705450007) variants in the same SL 70545 series. If your BOM calls for 5 or 8 circuits, those siblings are direct drop-in replacements for the same receptacle family. No other specs change.

Mates with SL series crimp receptacle housings (e.g., 70066 series) that accept 22-28 AWG terminals. Termination is through-hole solder — no press-fit tooling needed.

Frequently asked questions

What is the pin pitch of Molex 0705450005?

The mating pitch is 0.100" (2.54mm), standard for the SL series.

When sourcing 0705450005, what's the closest functional second-source — 0705450004?

The 0705450004 is a 5-position sibling in the same series, identical in all other specs. It is a direct alternative if your circuit count is 5.
