The 0705450007: The 0.100" pitch sets the board footprint — standard 0.025" square pins fit into 0.040" plated through-holes on a 0.100" grid. The latch holder fastening provides a positive lock with the mating SL-series receptacle — the latch engages audibly and holds against vibration or cable strain without relying on friction alone. Insulation height of 0.465" (11.80mm) above the board surface leaves clearance for the receptacle body and wire exit — check the z-height budget in a tight enclosure.

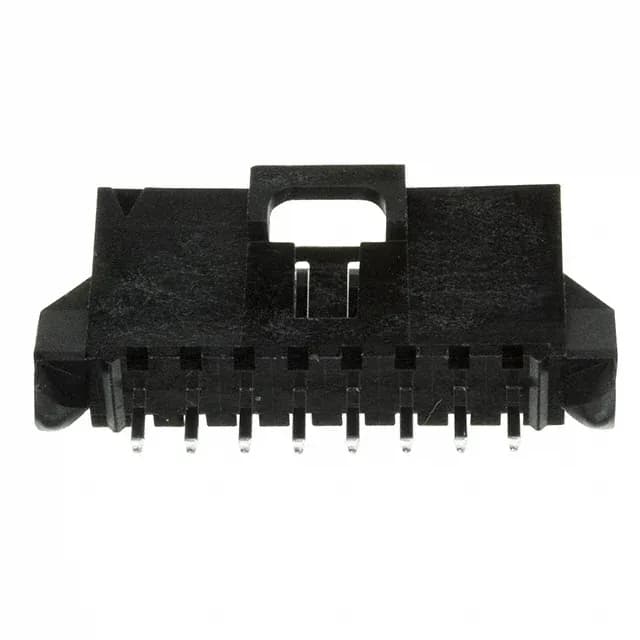

Molex 0705450007 SL 70545 Header – 8 Pos, 2.54mm, Shrouded
MPN0705450007
Active
Molex SL 70545 series, 0705450007, board-to-cable/wire header, 8 circuits, single row, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, tin-plated male pins, black UL94 V-0 polyester housing, latch holder fastening, -40°C to 105°C operating range.
$1.7600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 70545
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70545 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.465\" (11.80mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.470\" (11.94mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
What is the pitch and position count of the 0705450007?
All positions are loaded.
