Board-to-Cable Wiring: 10 Circuits at 0.100" Pitch

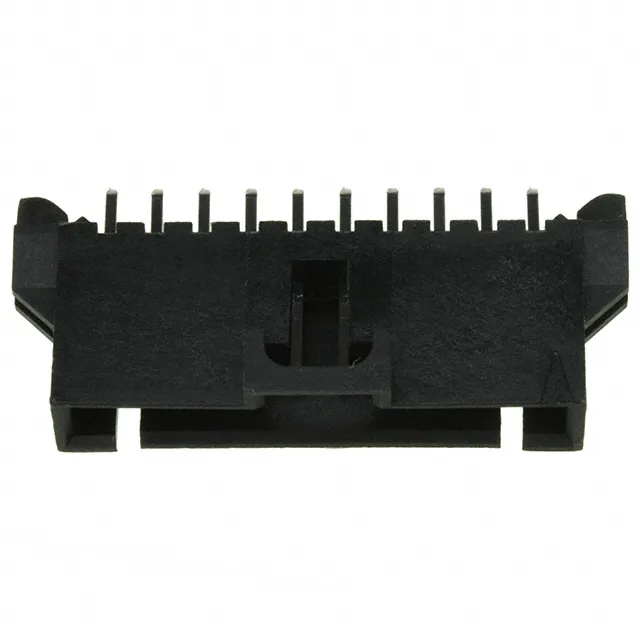

The 0705450009: This 10-position single-row header from the SL 70545 series mates with a cable-side receptacle to carry signals between a PCB and a wire harness.
Tin Plating: What 150 µinch Buys You
Tin is the workhorse finish for moderate-duty signal connections — it costs less than gold and holds up well in dry indoor environments or sealed enclosures where corrosion is not a concern. The solder tails are also tin-plated, which matches standard lead-free soldering profiles and avoids galvanic mismatch with the PCB pad finish.
Through-Hole Mounting and Board Guide
The contact length — post is 0.130" (3.30mm), mating length is 0.240" (6.10mm) — provides enough tail to protrude through a standard 1.6mm PCB and still leave room for a solder fillet.
Sourcing and Lifecycle: Active, Quoted to Order
No official successor or cross-reference has been issued by Molex. The base product number is 070545, which covers the SL 70545 series. The 0009 suffix specifies the 10-circuit, single-row, tin-plated variant in tube packaging.
