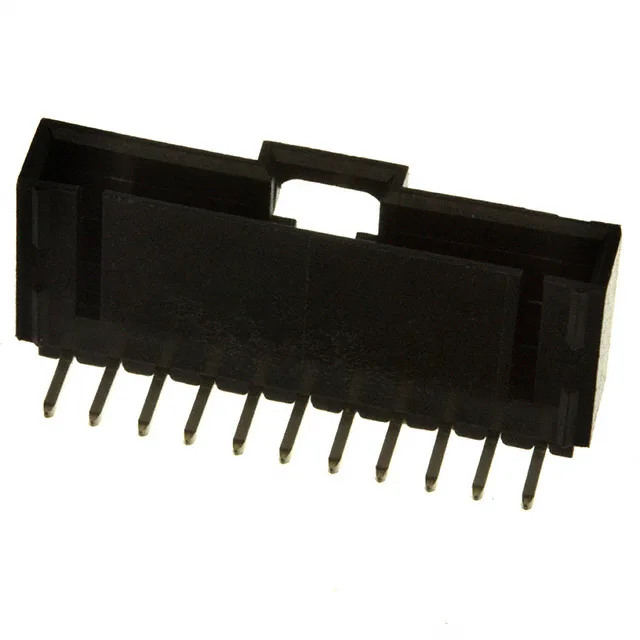

Board-to-wire header, 11 circuits
The 0705530010 is the 11-circuit member of the Molex SL 70553 shrouded header line, a board-to-cable/wire interconnect. It carries gold-plated mating contacts rated 250 V, mounts through-hole right-angle, and terminates by solder.
Shroud, latch, and temperature range
The 4-wall shrouded housing with latch holder protects the male pins and provides positive retention with the mating receptacle. The glass-filled polyester insulator carries a UL94 V-0 flammability rating and supports an operating range of -40°C to 105°C.
