Molex 0705530058 — Pin Headers

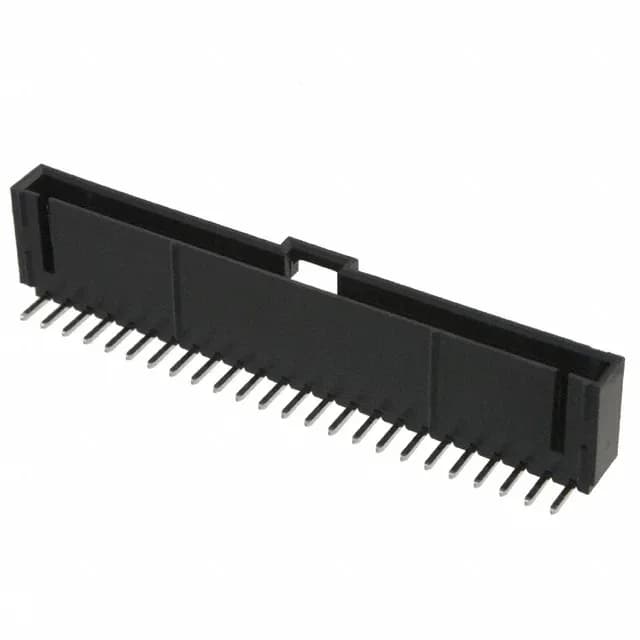

0705530058 Molex SL 70553 Header, 24 Pos, 2.54mm, R/A

MPN0705530058
Active

Molex SL 70553 series, 0705530058, shrouded header, 24 positions, 0.100" (2.54 mm) pitch, right-angle, through-hole, tin-plated contacts, latch holder, UL94 V-0, -40°C to 105°C.

$6.2500Ref. price · indicative, final on quote
Molex 0705530058 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 70553
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0705530058 key specifications
ParameterValue
SeriesSL 70553
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

0705530058 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions24
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

24 Circuits, 0.100" Pitch, Right-Angle Shrouded Header

The 0705530058: This is a 24-position, single-row, right-angle header from the Molex SL 70553 series.

Latch Holder for Vibration-Resistant Mating

In automotive or industrial environments where the assembly sees vibration, the latch prevents the connector pair from backing apart—a common failure mode on unlatched headers.

Board-to-Cable/Wire Style — What It Connects To

The style is Board to Cable/Wire, meaning this header is designed to mate with a crimp-to-wire receptacle housing, not a board-to-board mezzanine connector.

Frequently asked questions

Does the 0705530058 have a latch, and what does it mate with?

Yes, the fastening type is a latch holder. It mates with the corresponding SL 70553 receptacle housing (crimp-to-wire, 0.100" pitch, 24 circuits). The latch locks the pair together for vibration resistance.
