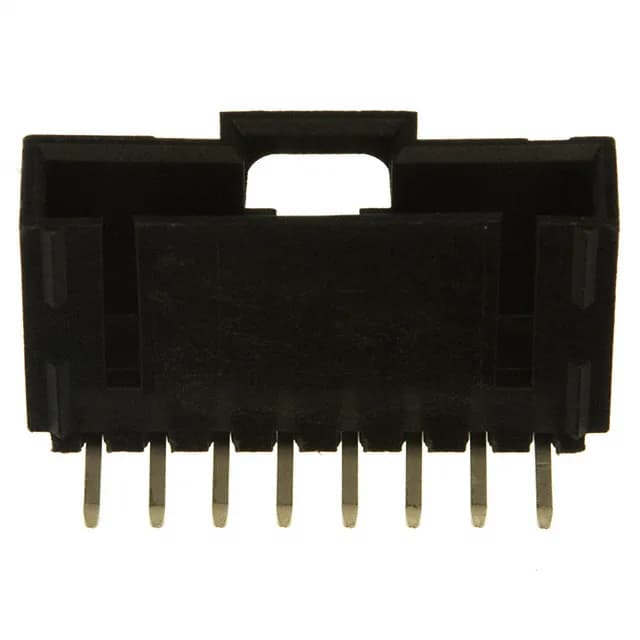

Molex SL 70553 series, 8-position single-row shrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole termination, gold-plated mating contacts, latch holder fastening, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | SL 70553 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0705530112: Mating contacts are gold-plated at 30.0 µinch (0.76 µm) over phosphor bronze base material.
In a panel or equipment subject to vibration, the latch keeps the mated pair from backing apart.
The pitch is 0.100" (2.54 mm), single row, 8 positions loaded.
This header mates with a SL series crimp receptacle housing (single-row, 8-circuit, 0.100" pitch) using the matching crimp terminals.
Yes, it is ROHS3 Compliant per the lifecycle record.
