Right-Angle 9-Pin Header for Board-to-Wire Interconnects
Gold Mating Finish and Latch Retention
The tin-plated solder posts (74.8µin thickness) match standard wave-solder profiles.
It ships in tube packaging and is ROHS3 compliant.

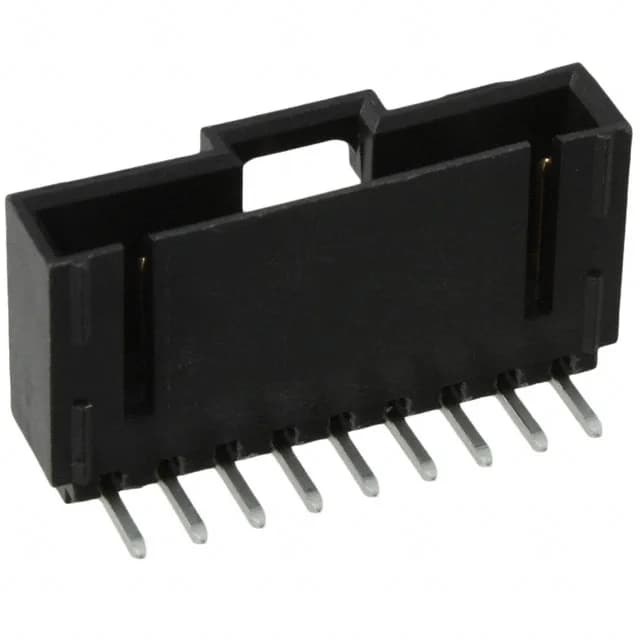

Molex 0705530113 SL 70553 Header – 9 Pos, 2.54mm, R/A, Gold
MPN0705530113
Active
Molex SL 70553 series, 9-position single-row header, 0.100" (2.54mm) pitch, right-angle through-hole, 30.0µin gold mating finish, latch holder, UL94 V-0, active production.
$3.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 70553
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70553 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for Molex 0705530113?
This is a board-to-wire header, so it mates with a SL 70553 series crimp receptacle housing (female side) using the matching crimp terminals.
Is Molex 0705530113 RoHS compliant?
Yes, it is ROHS3 compliant per the manufacturer's listing.
