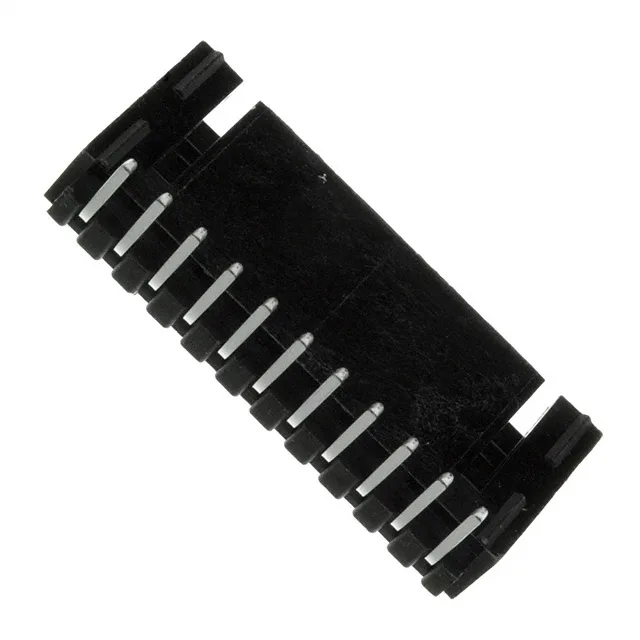

Molex SL 70553 0705530115 Header, 11-Pos 2.54mm

MPN0705530115
Active

Molex SL 70553 header, order code 0705530115, 11 positions, single row, 0.100" (2.54 mm) pitch, 250 V, gold-plated mating contacts, through-hole right-angle, solder termination, shrouded 4-wall.

$5.5600Ref. price · indicative, final on quote
0705530115 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0705530115 Technical Specifications
ParameterValue
SeriesSL 70553
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating250V
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.215\" (5.45mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions11
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post74.8µin (1.90µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-wire header with latch holder

The 0705530115 is the 11-circuit member of Molex's SL 70553 shrouded header line, a board-to-wire interconnect with a latch holder for positive mating retention. It carries gold-plated mating contacts rated 250 V and mounts through-hole right-angle with solder termination.

Temperature range and flammability

The header operates from -40°C to 105°C and carries a UL94 V-0 flammability rating on the glass-filled polyester housing. The 30.0 µin (0.76 µm) gold mating finish supports repeated mating cycles in automotive, industrial, and medical applications.
