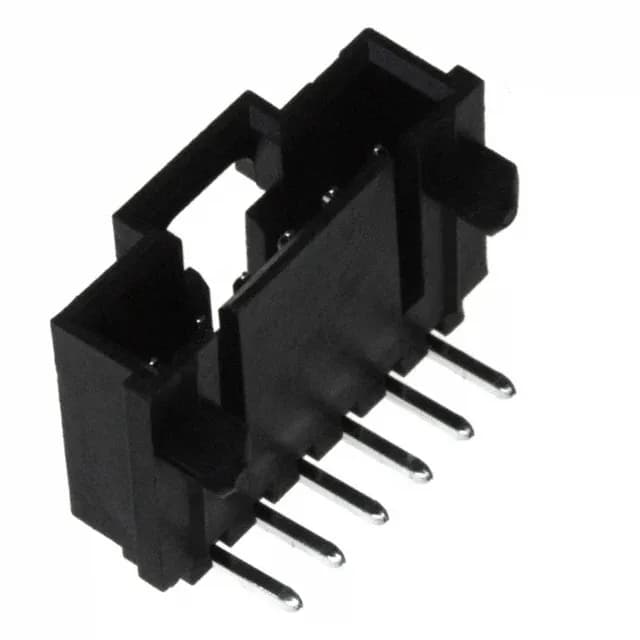

Molex SL 70555 series, 0705550005, Board to Cable/Wire header, 6 circuits, 0.100" (2.54mm) pitch, single row, right-angle through-hole, shrouded 4-wall, tin-plated male pins, latch holder, UL94 V-0, -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | SL 70555 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0705550005: Six positions in a single row keep the board footprint narrow — useful for edge-mounted connectors where space is tight. The latch holder provides positive retention — the lock engages with an audible click and resists vibration-induced separation.
In a 24V or 48V industrial control circuit, the margin is generous.
The SL 70555 series remains in the Molex active portfolio.
Pin 1 is typically marked by a triangle or chamfer on the housing. The mating receptacle (e.g., Molex 50-57-9406 or similar SL crimp housing) accepts 22-28 AWG terminals. Confirm the keying orientation with the mating half datasheet.
Yes. The 0.100" (2.54mm) mating pitch is standard for SL series female socket housings and other 2.54mm pitch crimp receptacles. The shrouded 4-wall design ensures alignment with the mating half.
