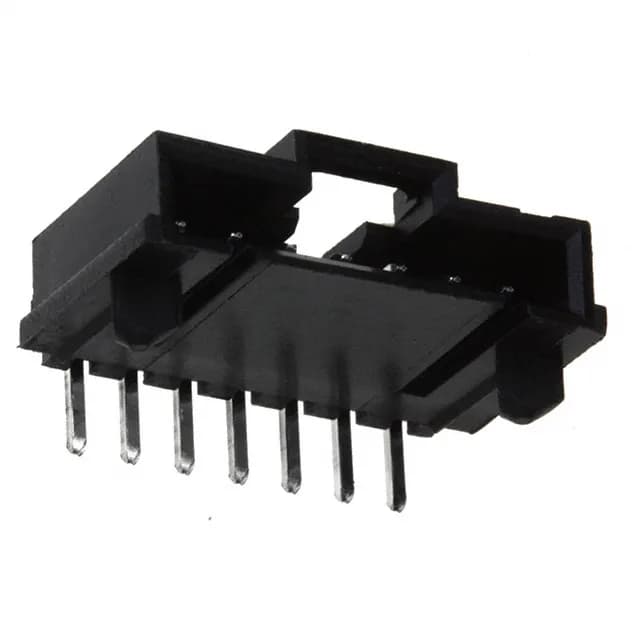

Molex SL 70555 series, 7-position single-row header, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, tin-plated male pins, latch holder fastening, UL94 V-0 black polyester housing.
| Parameter | Value |
|---|---|
| Series | SL 70555 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250V |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.215\" (5.45mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0705550006: This header mates with Molex SL 70066 or 70400 series receptacle housings that accept the matching crimp terminals (e.g., 16-20 AWG tin-plated terminal 70058). Confirm the housing part number against your wire gauge and circuit count before ordering.
ROHS3 compliant.
Submit an RFQ for current pricing and lead time — no stock-holding claim, confirmed per request.
Mates with SL series receptacle housings (e.g., Molex 70066 or 70400 series) that accept the matching crimp terminal. The latch holder on this header locks with the housing's mating latch.
