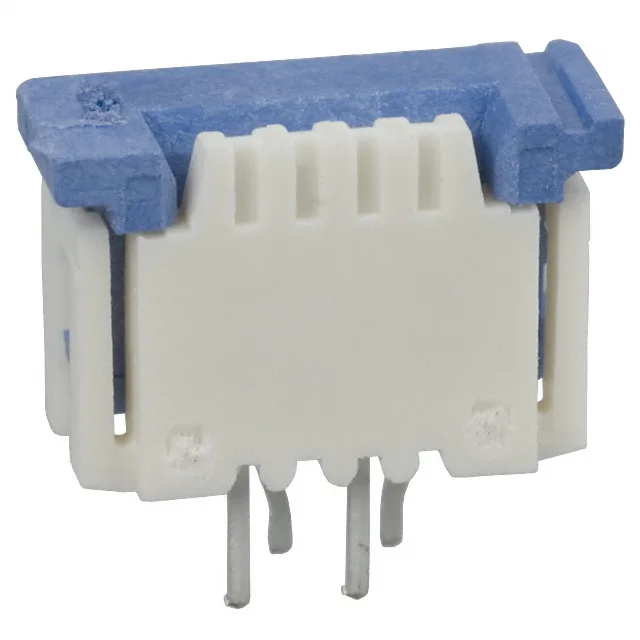

Molex 0712260425
MPN0712260425
Obsolete
$0.3900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 71226 |
| Mounting | Through Hole |
| Cable end type | Tapered |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 80°C |
| Housing color | Natural |
| Actuator color | Blue |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Liquid Crystal Polymer (LCP), Glass Filled |
| Height above board | 0.236\" (6.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tray |
| Features | Zero Insertion Force (ZIF) |
| Termination | Kinked Pin |
| Mating cycles | 5 |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 4 |
| Contact finish thickness | 196.9µin (5.00µm) |
