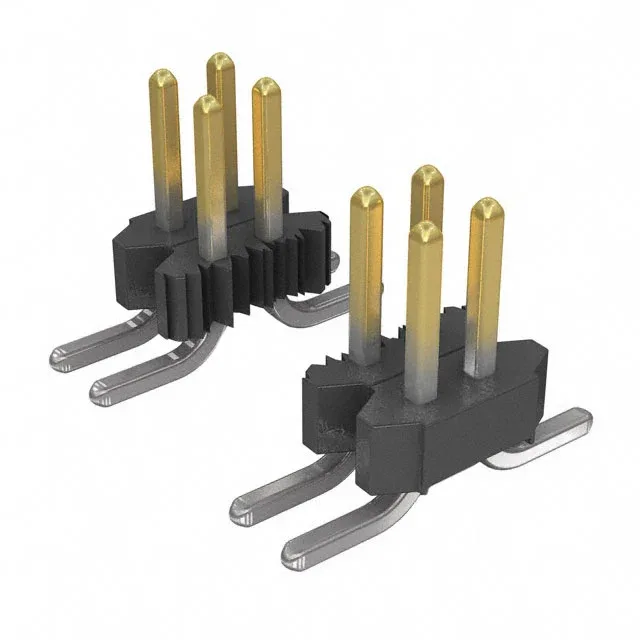

Molex C-Grid 71308 header, order code 0713080288, 88 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, male pin, gold mating contact, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | C-Grid 71308 |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 88 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0713080288: The square male pin extends 0.240" (6.10mm) from the insulator face, and the insulator stands 0.090" (2.29mm) above the board — these dimensions determine the mating receptacle cavity depth and the board-to-board spacing.
The 0713080288 is listed as a Board to Board or Cable style header.
RoHS and REACH compliance documentation is available from Molex for the C-Grid 71308 series.
