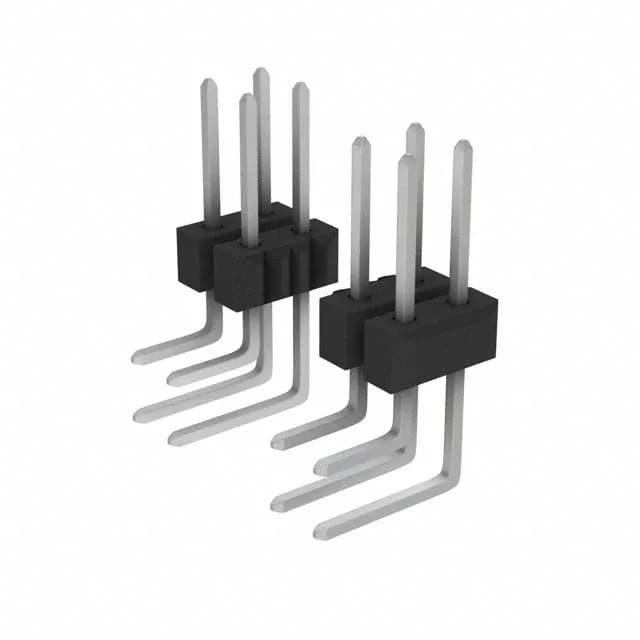

Molex C-Grid 71764 series, 0717640010, 10-position unshrouded breakaway header, 2.54mm pitch, right-angle through-hole, tin-plated male pins, UL94 V-0 black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | C-Grid 71764 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.200\" (5.08mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 0717640010: This 10-position breakaway header sits in the C-Grid 71764 series, unshrouded, with a 2.54mm pitch that sets the board footprint for a standard 0.100-inch grid.
Mates with standard C-Grid 2.54mm receptacle housings using crimp terminals. Through-hole solder termination: the 0.110-inch (2.79mm) post length fits a standard 1.6mm PCB with enough protrusion for a reliable fillet.
