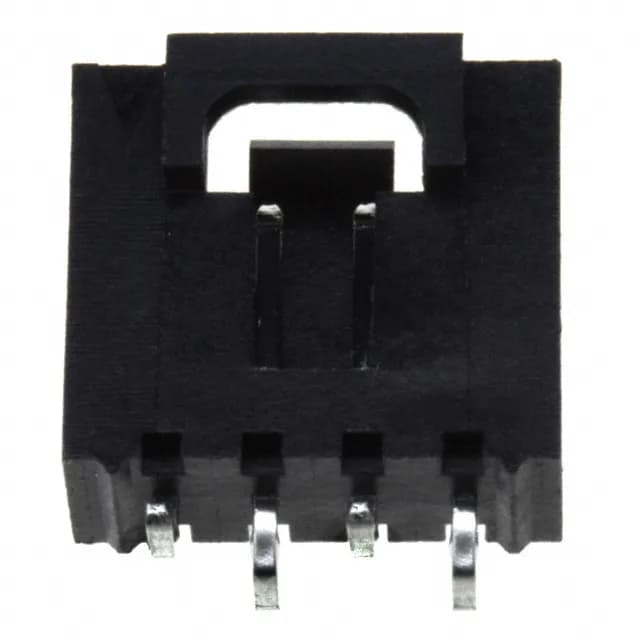

Molex SL 74099 series, 0740990004, shrouded header, 4 circuits, 0.100" (2.54 mm) pitch, surface-mount, tin-plated male pins, latch holder, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | SL 74099 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.450\" (11.43mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Intended applications include general-purpose, industrial, medical, and automotive harnesses where the board-to-cable connection is not frequently disconnected.
The part is ROHS3 compliant.
This header mates with Molex SL series crimp receptacle housings (such as the 70066 or 70400 series) that accept 22-28 AWG terminals.
Yes, this header is part of the SL 74099 series and mates with standard SL crimp receptacle housings that use the latch ramp. Confirm the receptacle part number against the SL series catalog for position count and keying.
