Molex 0740990008 — Pin Headers

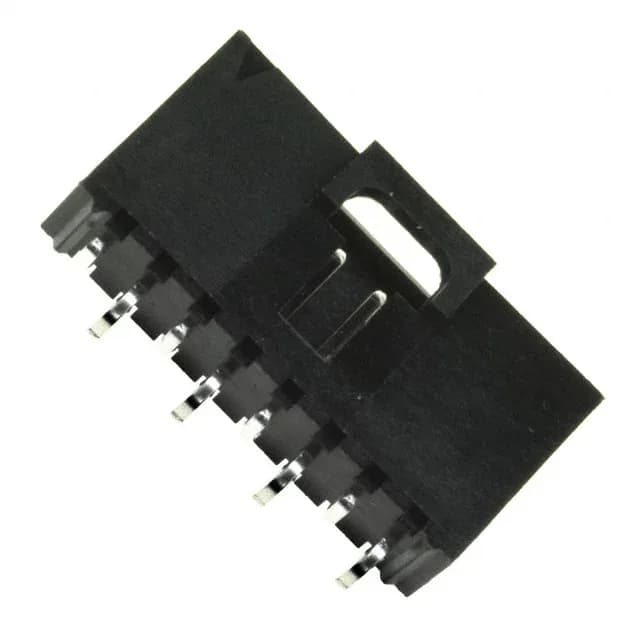

Molex 0740990008 SL Header 8 Pos 2.54mm SMT

MPN0740990008
Active

Molex SL 74099 series, 0740990008, shrouded header, 8 positions, 0.100" (2.54mm) pitch, surface mount, tin-plated male pins, latch holder, UL94 V-0.

$2.5100Ref. price · indicative, final on quote
Molex 0740990008 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 74099
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0740990008 key specifications
ParameterValue
SeriesSL 74099
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLatch Holder
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.450\" (11.43mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube

All specifications

0740990008 additional specifications
ParameterValue
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions8
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

8-Position Shrouded Header, 0.100" Pitch, SMT

The 0740990008: Termination is surface-mount solder, which places the connector flush on the board without through-holes — saves board real estate on the opposite side but requires a reflow profile matched to the polyester glass-filled housing (UL94 V-0 rated).

Mating Half and Terminal Cross-Reference

This header mates with SL series crimp housings (single-row, 8-circuit receptacle) and uses the matching crimp terminals — typically Molex 70058 series for 22-30 AWG wire. For a complete wire-to-board connection, order the header (0740990008), the receptacle housing (e.g., 50-57-9408 or similar 8-position SL housing), and the crimp terminals (70058 series) — it's three parts, not one.

ROHS3 compliant per.

Frequently asked questions

Can Molex 0740990008 be used in automotive applications?

Yes — the spec table lists automotive, general purpose, industrial, and medical as intended applications. The UL94 V-0 housing and latch holder suit the vibration and flame-resistance requirements common in automotive interior and underhood environments.

Is Molex 0740990008 RoHS compliant?

Yes, it is ROHS3 compliant per the lifecycle record.
