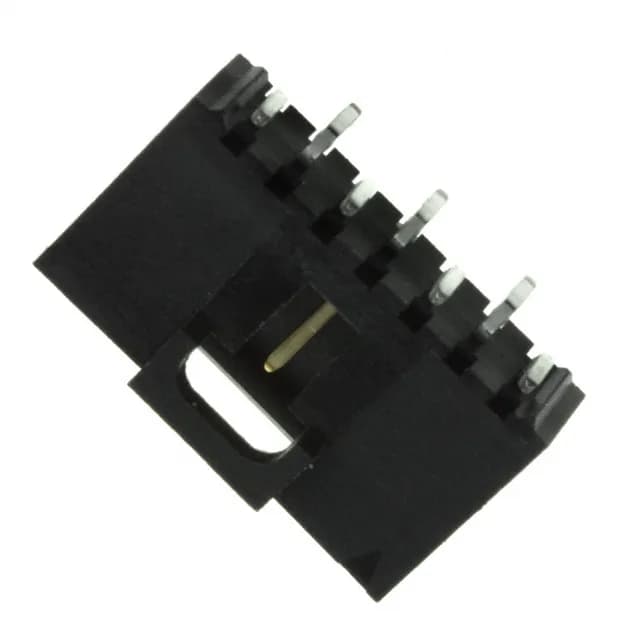

Molex SL 74099 series, 7-position single-row shrouded header, 0.100" (2.54mm) pitch, surface-mount solder termination, gold-plated male pins, latch holder retention, black UL94 V-0 polyester housing.
| Parameter | Value |
|---|---|
| Series | SL 74099 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.450\" (11.43mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Termination is solder to surface-mount pads — the SMT footprint matches the 0.100" pitch row. The mating pin length of 0.240" (6.10mm) provides adequate wipe for a reliable connection with the matching SL series crimp receptacle housing.
We source the 0740991007 through independent distribution and quote per RFQ. Submit an RFQ through this page to receive a commercial offer.
This header mates with a Molex SL series crimp receptacle housing (e.g., 70066 or 70107 series) using the appropriate crimp terminals. The 0.100" pitch and single-row layout are shared across the SL family; confirm the circuit count and keying match your receptacle.
