Single-row position count
The 0740991008: The SL 74099 series also includes 2 through 16 position single-row headers with the same pitch, footprint, and gold mating contact finish, so match the position count to the circuit count.

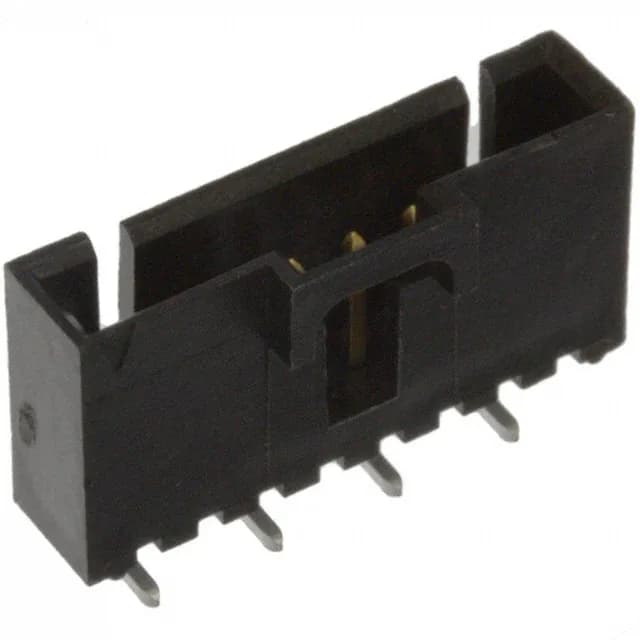

Molex 0740991008 SL Header, 8 Pos, 2.54mm, SMT
MPN0740991008
Active
Molex SL 74099 header, order code 0740991008, 8 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, surface mount, solder termination, latch holder, UL94 V-0, ROHS3 compliant.
$2.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 74099
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 74099 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.450\" (11.43mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Is 0740991008 RoHS compliant?
Yes, the 0740991008 is ROHS3 compliant per the manufacturer listing.
What is the mating connector for 0740991008?
The 0740991008 mates with a SL series crimp receptacle housing (e.g., 70066 series) that accepts the matching crimp terminal.
What is the current rating of Molex 0740991008?
The exact per-contact current rating is listed in the SL series datasheet; the gold-plated mating contacts support the full system rating.
Where can I buy 0740991008?
The 0740991008 is available through Molex distribution channels.
