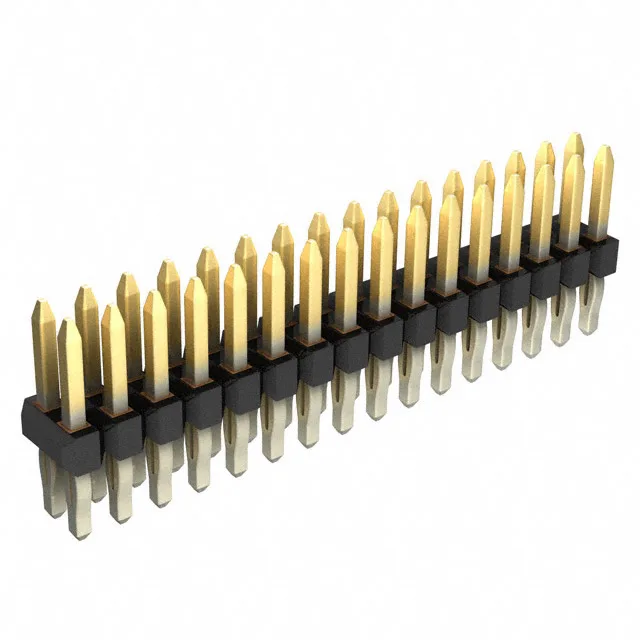

Molex 0751020054 C-Grid 75102 Header 32-Position 2.54mm Pitch
Molex C-Grid 75102 header, 32 positions, dual-row, 0.100" (2.54mm) pitch, male square-pin through-hole. Gold-plated mating face (15.0µin), tin solder tail (100.0µin), press-fit or solder termination, UL94 V-0 black LCP housing, 0.090" insulation height.
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 75102 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 32 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.187\" (4.75mm) |
| Overall contact length | 0.517\" (13.13mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Frequently asked questions
Where can I buy 0751020054 and how do I get a price?
The 0751020054 is sourced to order against BOM quantity through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ with your required quantity and delivery window to get a live quote.
What is 0751020054's listed series?
The 0751020054 belongs to the C-Grid 75102 series — Molex's dual-row 0.100" pitch header family with base product number 075102.
What is 0751020054's listed style?
Its listed style is Board to Board or Cable, which covers board-to-board stacking and board-to-wire harness drop applications in a single header type.
