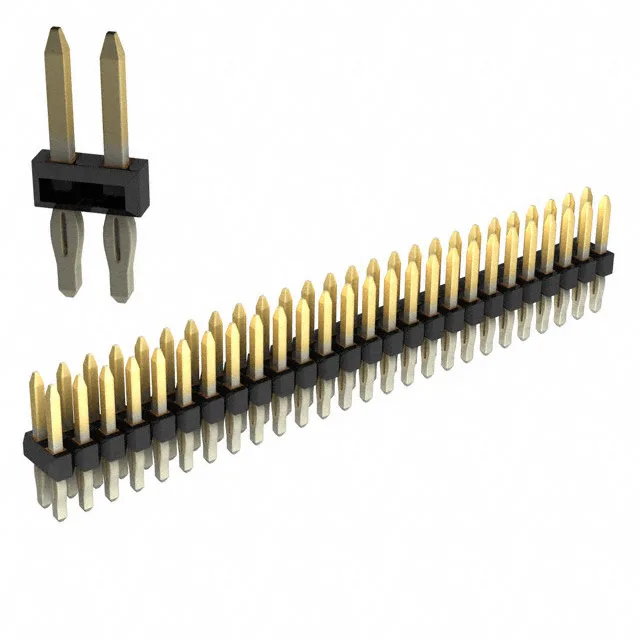

Molex C-Grid 75102 header, order code 0751020064, 52 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole press-fit/solder termination, push-pull breakaway style.
| Parameter | Value |
|---|---|
| Series | C-Grid 75102 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 52 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.187\" (4.75mm) |
| Overall contact length | 0.517\" (13.13mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0751020064 is the 52-circuit member of Molex's C-Grid 75102 breakaway header line, unshrouded with a push-pull fastening system. Gold-plated mating contacts (15.0 µin) and tin-plated posts (100.0 µin) suit repeated mating cycles; the through-hole press-fit/solder termination anchors into a 0.100" row-spacing footprint.
The style is Board to Board or Cable, as a dual-row breakaway header with male square pins.
RoHS and REACH compliance data is provided by Molex in the product drawing and compliance certificate.
