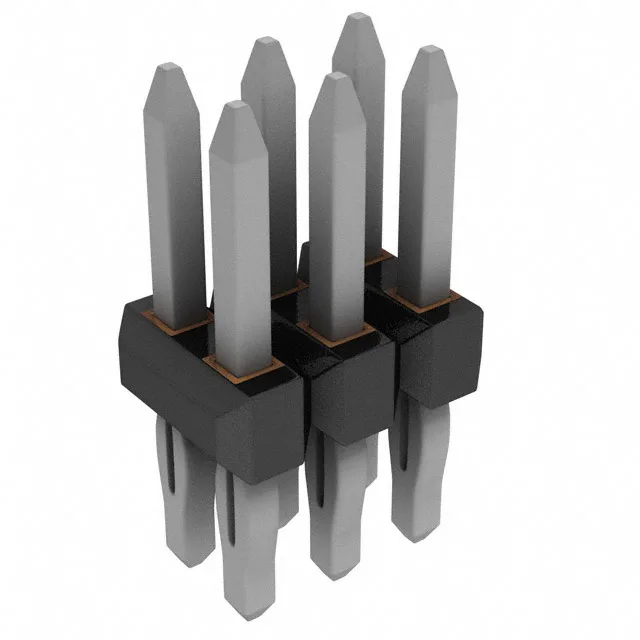

0751020080 - Molex
MPN0751020080
Active
$5.4300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 75102 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.187\" (4.75mm) |
| Overall contact length | 0.517\" (13.13mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
