Board-to-board or cable header, 12 positions

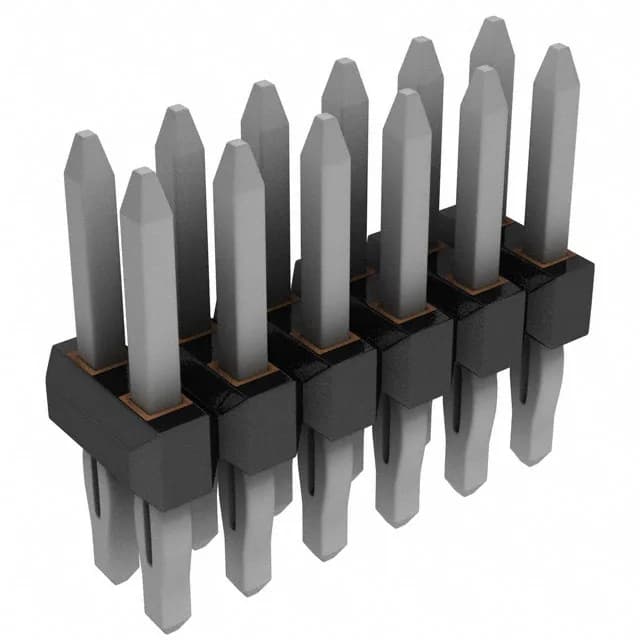

The 0751020083 is the 12-position member of the Molex C-Grid 75102 breakaway header line, designed for board-to-board or cable interconnection. It carries tin-plated square male pins on a 0.100" (2.54 mm) pitch in a dual-row layout, with all 12 positions loaded.
Mounting and termination options
The header mounts through-hole and accepts both press-fit and solder termination — the press-fit option allows solderless assembly into plated through-holes. The unshrouded push-pull fastening style mates with standard C-Grid receptacles; the LCP housing carries a UL94 V-0 flammability rating.
