Molex 0751020084 — Pin Headers, Sockets & Housings

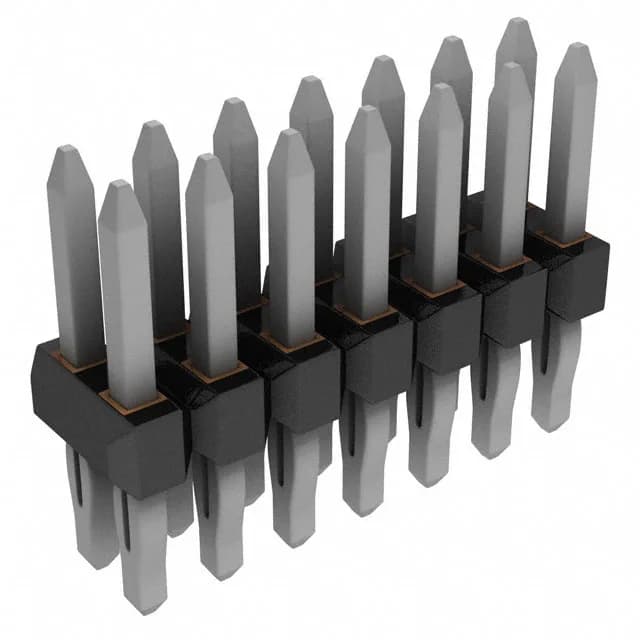

Molex C-Grid 75102 0751020084 Header, 14 Pos, 2.54mm

MPN0751020084
Active

Molex C-Grid 75102 header, breakaway, order code 0751020084, 14 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, press-fit and solder termination.

$11.1400Ref. price · indicative, final on quote
Molex 0751020084 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0751020084 key specifications
ParameterValue
SeriesC-Grid 75102
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.090\" (2.29mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0751020084 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationPress-Fit, Solder
ApplicationsAutomotive, General Purpose, Lighting, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions14
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.187\" (4.75mm)
Overall contact length0.517\" (13.13mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - mating200.0µin (5.08µm)

Product details

Board-to-board or cable, unshrouded

The 0751020084 is the 14-position member of Molex's C-Grid 75102 breakaway header line, unshrouded, for board-to-board or cable duty. UL94 V-0 rated LCP housing.

Frequently asked questions

What is 0751020084's listed style (Board to Board or Cable) on this Pin Headers, Sockets & Housings line?

The listed style is Board to Board or Cable.
