0751020088 Molex C-Grid 75102 Header 22-Pos 2.54mm Pitch

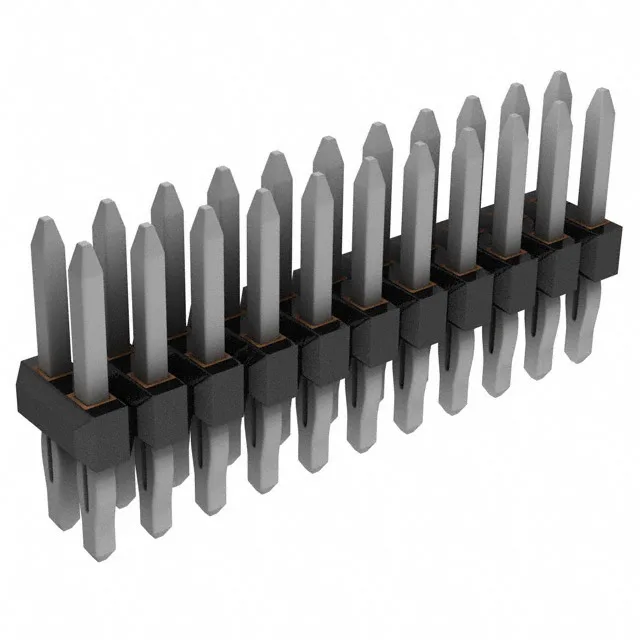

Molex C-Grid 75102 header, 22 positions, dual-row 0.100 inch (2.54 mm) pitch, unshrouded male pin, push-pull breakaway, tin-plated contacts (200 µin/5.08 µm on mating face), through-hole press-fit and solder termination, glass-filled LCP housing rated UL94 V-0.
Specifications
| Parameter | Value |
|---|---|
| Series | C-Grid 75102 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.187\" (4.75mm) |
| Overall contact length | 0.517\" (13.13mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
Frequently asked questions
How do I get current pricing and availability for 0751020088?
Sourced and quoted to order against the BOM quantity through independent distribution — availability and current pricing are confirmed at quote time, not as a live listing.
What does 0751020088 mate with?
The 0751020088 mates with the matching C-Grid 75102 dual-row receptacle housing in the same 22-circuit 2.54 mm pitch configuration — confirm the position count matches the board or harness design before ordering the pair.
What series is the 0751020088 part of?
The 0751020088 is a member of the Molex C-Grid 75102 series — a dual-row unshrouded header line rated for board-to-board and cable interconnect in automotive, general-purpose, lighting, medical, and telecom applications.
What is the pin count and pitch of the 0751020088?
22 positions, dual-row at 0.100 inch (2.54 mm) pitch with 0.100 inch row spacing — all 22 positions loaded.
What compliance rating does the 0751020088 housing carry?
The glass-filled LCP housing is rated UL94 V-0 for flame resistance — the standard flammability rating for connector housings in industrial and medical equipment.
