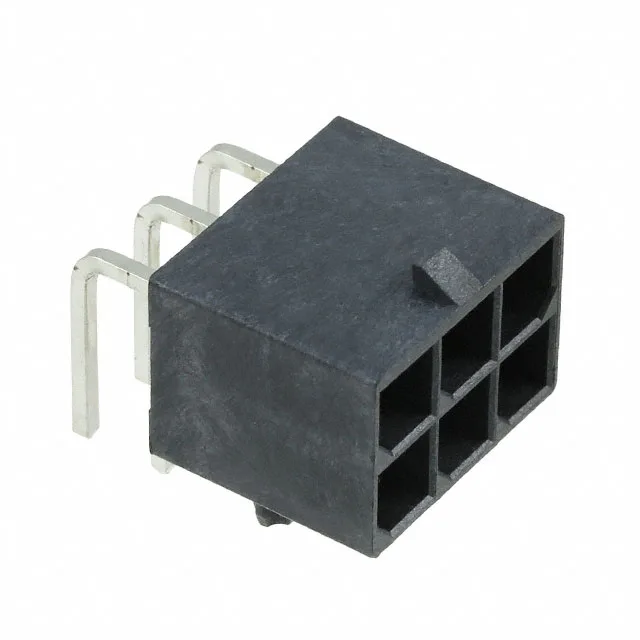

Molex 0768250006
MPN0768250006
Active
$3.1700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mega-Fit |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper |
| Insulation color | Black |
| Insulation height | 0.572\" (14.53mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide, Glow Wire Compliant |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.224\" (5.70mm) |
| Positions | 6 |
| Row spacing - mating | 0.224\" (5.70mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
