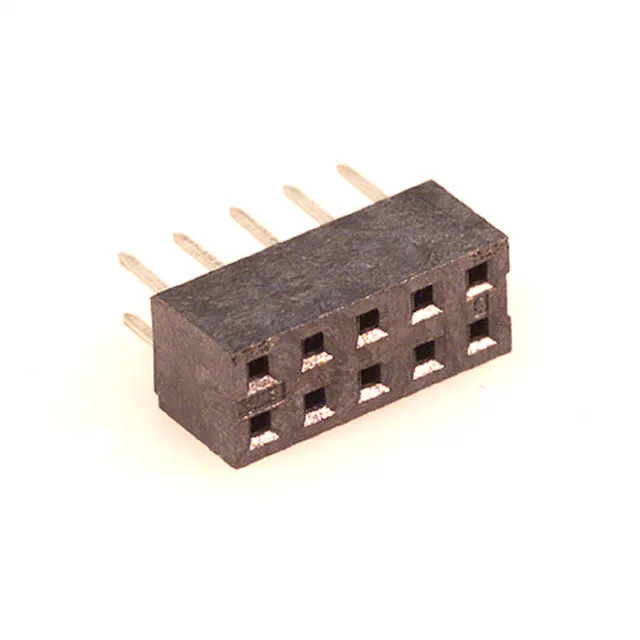

Molex Milli-Grid 79107 receptacle, order code 0791070004, 10 positions, dual row, 2.00 mm pitch, 1 A, 125 V, gold-plated mating contacts, through-hole, solder termination.
Molex 0791070004 Milli-Grid 79107 Receptacle, 10 Pos
MPN0791070004
Obsolete
Molex Milli-Grid 79107 receptacle, order code 0791070004, 10 positions, dual row, 2.00 mm pitch, 1 A, 125 V, gold-plated mating contacts, through-hole, solder termination.
$2.6400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79107 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
How can I order the 0791070004 or check availability?
The part is obsolete but available through surplus channels. Submit an RFQ for current pricing and lot availability — quantities are confirmed per inquiry.
