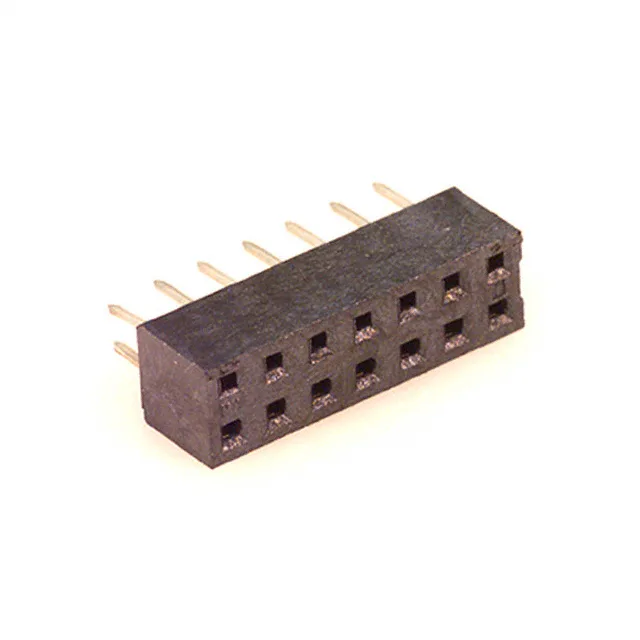

Molex Milli-Grid 79107 receptacle, order code 0791070006, 14 positions, dual row, 2.00 mm pitch, 1 A, 125 V, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79107 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0791070006: Gold-plated mating contacts rated 1 A at 125 V. Mating pitch is 2.00 mm, row spacing also 2.00 mm.
Molex lists the 0791070006 as Obsolete.
The 0791070006 carries 14 positions in a dual-row layout.
