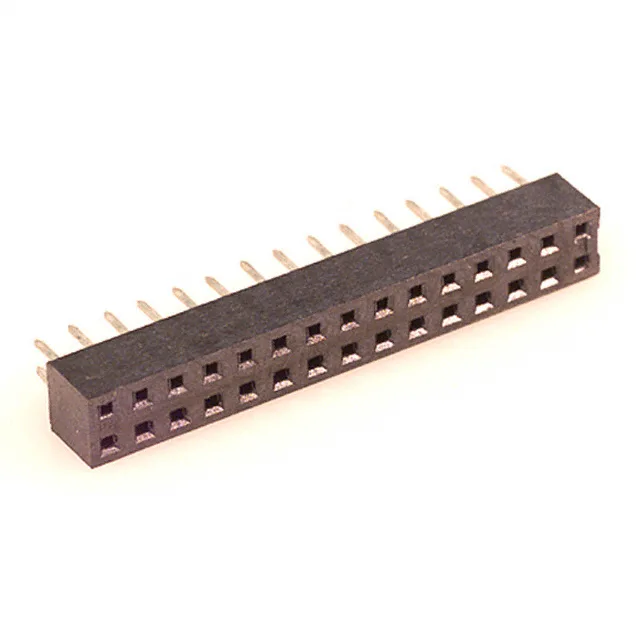

Molex Milli-Grid 79107 series receptacle, 30 positions, 2.00 mm pitch, through-hole, gold-plated female socket contacts, rated 1 A at 125 V, black thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 79107 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 30 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 74.8µin (1.90µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0791070014: Molex has marked this part Obsolete.
This is a Milli-Grid 79107 receptacle — it mates with the matching 2.00 mm pitch Milli-Grid pin header (base number 079107). The 30-position, dual-row layout is fully loaded — all 30 positions are active.
This part is obsolete and not held available via RFQ confirmation. It is sourced through independent distribution against an RFQ — contact us with your target quantity and we will confirm availability and pricing at quote time.
